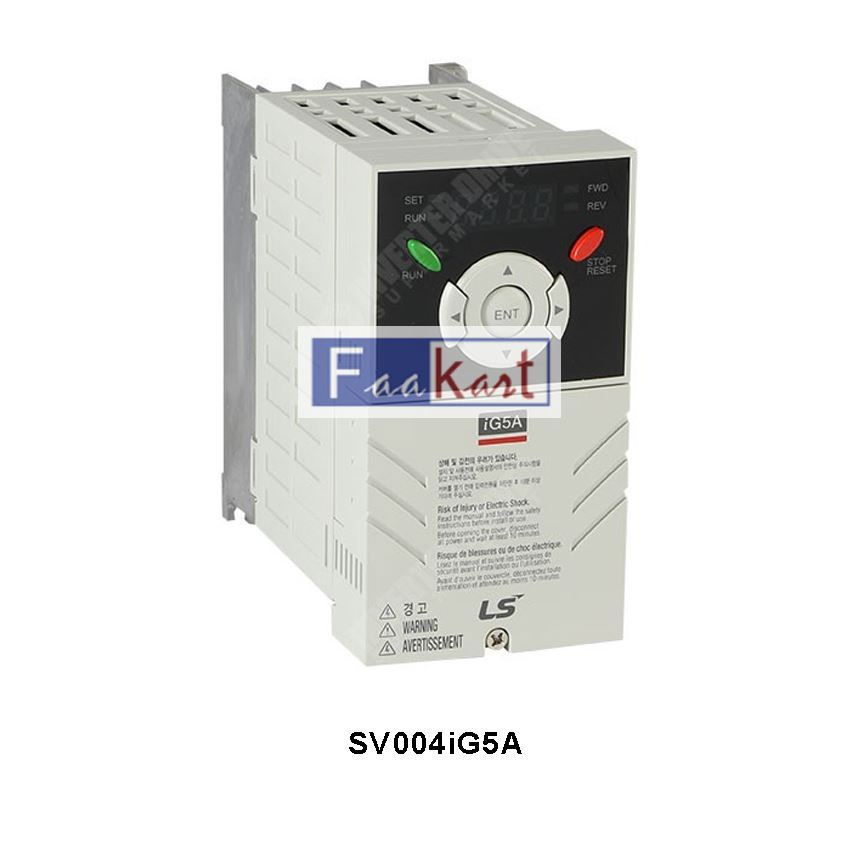

Picture of SV004iG5A-LS drive

SV004iG5A-LS drive

Model: Starvert iG5A 0.37kW 400V AC Inverter Drive, DBr, Unfiltered.
Be the first to review this product
Manufacturer: LS INDUSTRIAL SYSTEMS
SKU: CMX0185
Vendor: LATF
1,250.00 (SAR)
1,185.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

LS Industrial Systems Starvert iG5A AC Frequency Inverter for 0.4kW (0.5HP) 230V 3 Ph motor in VxF or Sensorless Vector Control control to 2.5A. Simple to set-up for a standard AC Induction motor.

Size 1: 70mm Wide x 130mm Deep x 128mm high. IP20.

Overload - 150% x 60 seconds.
Speed Control Range - 0-400Hz.
Braking - To 300 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.

Features - integrated keypad, 1 x Analogue Input, 8 Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a PC via 'Drive View'.
EMC Filters - None. See linked products below for external footprint EMC Filter Module.

Input Current - Not specified.
Input Voltage - 200-230V three phase +10%, -15% at 50-60Hz ±5%.

Cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 50mm.
3 x 4.5mm diameter mountings at rear for mounting.
