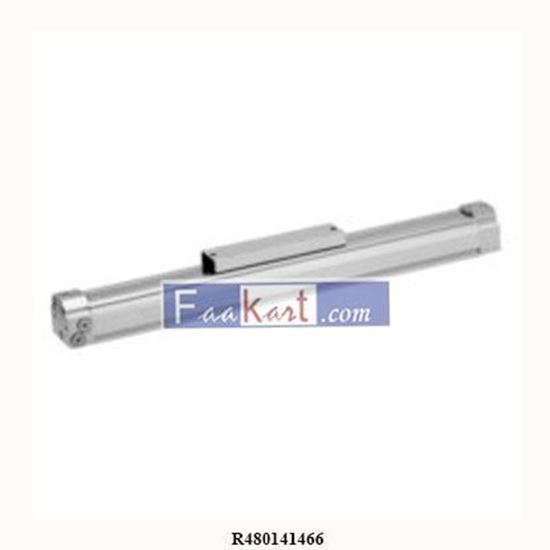

AVENTICS Rodless cylinders, Series RTC-BV R480141466

Be the first to review this product

Manufacturer: AVENTICS

SKU: PCM1584

Old price: 2,655.00 (SAR)

Price: 2,257.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications

Piston Ø: 32 mm

Stroke: 600 mm

Ports: G 1/8

Functional principle: Double-acting

Magnetic piston: with magnetic piston

Guide: integrated guide

Version rodless cylinder: Basic Version

Piston force: 507 N

Pressure for determining piston forces: 6,3 bar

Cushioning length: 20 mm

Cushioning energy: 7 J

Cushioning: Pneumatically

Cushioning: adjustable

Speed max.: 4 m/s

Stroke max.: 9900 mm

Working pressure min.: 2 bar

Working pressure max: 8 bar

Min. ambient temperature: -10 °C

Max. ambient temperature: 60 °C

Medium: Compressed air

Oil content of compressed air min.: 0 mg/m³

Oil content of compressed air max.: 1 mg/m³

Max. particle size: 5 µm

Weight 0 mm stroke: 1.39 kg

Weight +10 mm stroke: 0.031 kg
