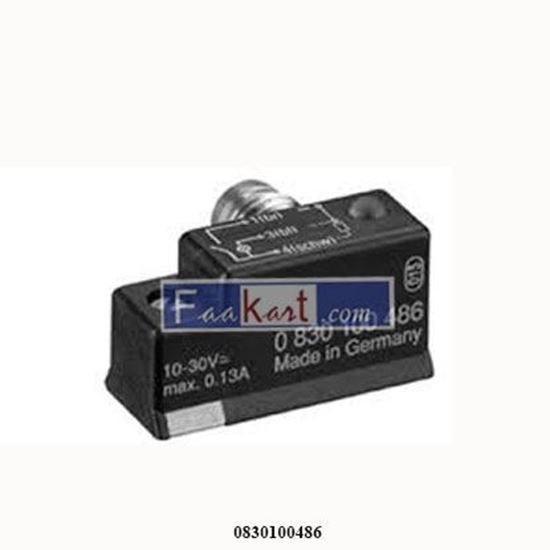

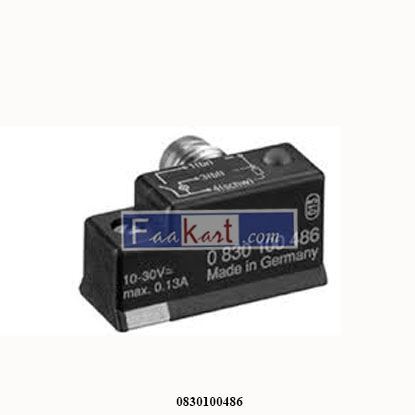

Picture of 0830100486 AVENTICS Proximity Sensor, Series ST9 ST9-R3-M008-030 27 OHM

0830100486 AVENTICS Proximity Sensor, Series ST9 ST9-R3-M008-030 27 OHM

- 9 mm groove - Plug, M8, 3-pin - Reed electronic PNP - Direct mounting for series KHZ
Be the first to review this product
Manufacturer: AVENTICS
SKU: PCM980
665.00 (SAR)
322.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications


Direct mounting for series
KHZ
Slot width
9 mm groove
Type of contact
Reed
Nominal current, actuated state
< 7 mA
Switching capacity
3 W / 5 VA
Protection class
IP67, IP65
Min. ambient temperature
-20 °C
Max. ambient temperature
80 °C
Voltage drop at Imax
I*Rs
Protective resistor for reed
27 Ω
DC switching current, max.
0.13 A
AC switching current, max.
0.2 A
Switching-point precision
±0,1 mT
LED status display
Yellow
Electrical connection 2, type
M8, Plug
Electrical connection 2, number of poles
3-pin
Operating voltage: DC, min.
10 V DC
Operating voltage: DC, max.
30 V DC
Operating voltage: AC, min.
10 V AC
Operational voltage: AC, max.
30 V AC
Short-circuit resistance
Protected against polarity reversal
Shock resistance
100 g / 11 ms
Vibration resistance
60 g (50 ... 2000 Hz)
Housing material
Polyamide

Features

  • Suitable for 9-mm dovetail nut
  • wide range of versions with different line lengths and connections
  • With a M8-plug directly on the sensor housing or free wire ends
  • Service-friendly, since the line can be mounted directly on the housing
  • Reed and electronic PNP sensor versions are available
