  • 0822120007 AVENTICS™ Profile cylinder ISO 15552, PRA series PRA-DA-032-0200-0322111100000000000000-B

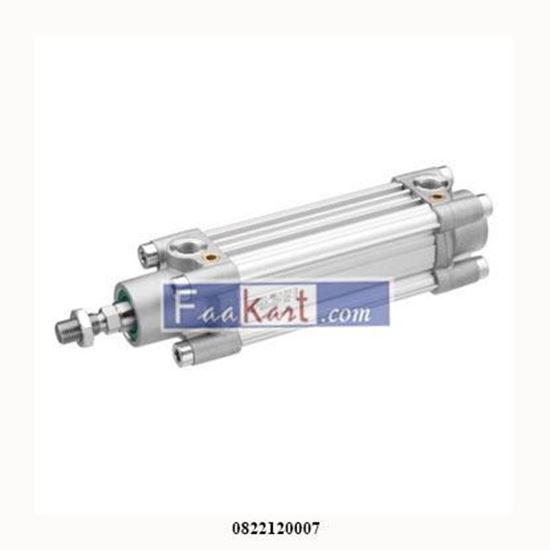

Picture of 0822120007 AVENTICS™ Profile cylinder ISO 15552, PRA series PRA-DA-032-0200-0322111100000000000000-B

0822120007 AVENTICS™ Profile cylinder ISO 15552, PRA series PRA-DA-032-0200-0322111100000000000000-B

AVENTICS™ Profile cylinder ISO 15552, PRA series 0822120007
Be the first to review this product
Manufacturer: AVENTICS
SKU: PCM1731
765.00 (SAR)
626.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications


Standards
ISO 15552
Piston Ø
32 mm
Stroke
200 mm
Functional principle
Double-acting
Cushioning
Pneumatic adjustable cushioning
Magnetic piston
Piston with magnet
Environmental requirements
Industry standard, ATEX optional
Piston rod
single
Scraper
Standard Industry Scraper
Pressure for determining piston forces
6,3 bar
Retracting piston force
435 N
Extracting piston force
505 N
Min. ambient temperature
-20 °C
Max. ambient temperature
80 °C
Working pressure min.
1.5 bar
Working pressure max
10 bar
Ports
G 1/8
Piston rod thread
M10x1,25
Cushioning length
16.5 mm
Cushioning energy
4.8 J
Features
  • 6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly
  • Available in piston diameters from 32 mm to 125 mm
  • Modular sealing system allows for adaptability
  • Advanced pneumatic end position cushioning
  • Additional elastic damping elements
  • Wide range of variants and accessories available in the configurator
