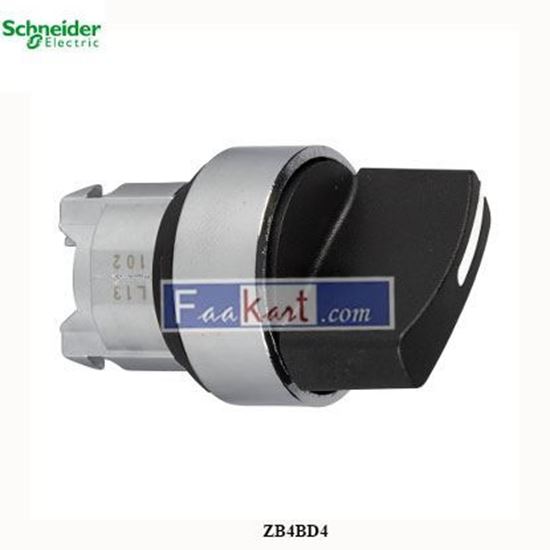

ZB4BD4 SCHNEIDER Selector switch head

Selector switch head, Harmony XB4, metal, black, 22mm, 2 positions, spring return from right to left

Manufacturer: Schneider

SKU: PCM1170

Old price: 125.00 (SAR)

Price: 53.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Main
Range of product	Harmony XB4
Product or component type	Head for selector switch
device short name	ZB4
Bezel material	Chromium plated metal
Mounting diameter	22 mm
Head type	Standard
Sale per indivisible quantity	1
Shape of signaling unit head	Round
type of operator	Right to left spring return
operator profile	Black standard handle
Operator position information	2 positions 90°

Complementary
CAD overall width	29 mm
CAD overall height	29 mm
CAD overall depth	44 mm
Net weight	0.045 kg
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Mechanical durability	1000000 cycles
electrical composition code	C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting
Device presentation	Basic element

Environment
Protective treatment	TH
Ambient air temperature for storage	-40…70 °C
Ambient air temperature for operation	-40…70 °C
overvoltage category	Class I conforming to IEC 60536
IP degree of protection	IP67 conforming to IEC 60529 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK06 conforming to IEC 50102
Standards	EN/IEC 60947-5-4 EN/IEC 60947-5-5 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1
product certifications	CSA BV UL listed GL DNV LROS (Lloyds register of shipping)
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
