Picture of XKBA34330 + XKBZ994 SCHNEIDER Complete joystick controller

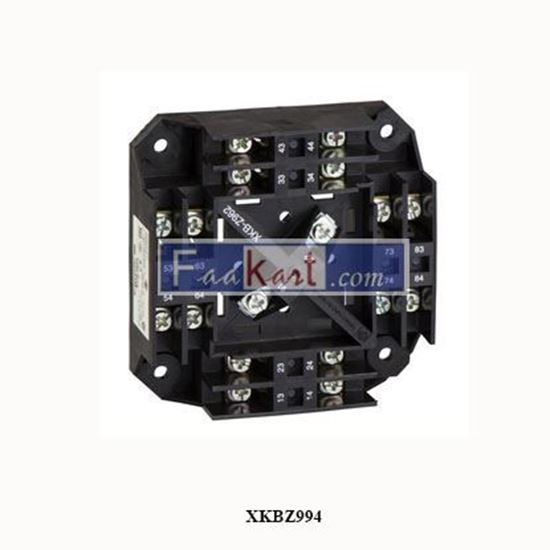

XKBA34330 + XKBZ994 SCHNEIDER Complete joystick controller

Complete joystick controller, Harmony XK, XKBA light hosting application Main Range of product Harmony XK Product or component type Complete joystick controller Product specific application Light hoisting applications
Be the first to review this product
Manufacturer: Schneider
SKU: NSRN004
2,563.00 (SAR)
1,726.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications

Main
Range of product Harmony XK
Product or component type Complete joystick controller
Product specific application Light hoisting applications
Complementary
device short name XKB
bezel material Metal
Fixing collar material Metal
Sale per indivisible quantity 1
Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -20…70 °C
Overvoltage category Class I conforming to IEC 61140
IP degree of protection IP54 conforming to IEC 60529
standards UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
product certifications CSA
UL
RRS
CCC
Contact code designation A300
Q300
Operator position information All positions
Operator profile Standard handle
Notch per direction 1…3 notches at 12°-20°-28° for each direction
Mechanical durability 1000000 cycles
Vibration resistance 6 gn (f= 1…70 Hz) conforming to IEC 60068-2-6
Shock resistance 20 gn (duration = 11 ms) conforming to IEC 60068-2-6
Connections - terminals Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end
Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end
Captive screw clamp terminals, >= 1 x 0.5 mm²
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1
10 A conforming to CSA C22.2 No 14
10 A conforming to UL 508
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Compatibility code XKB
