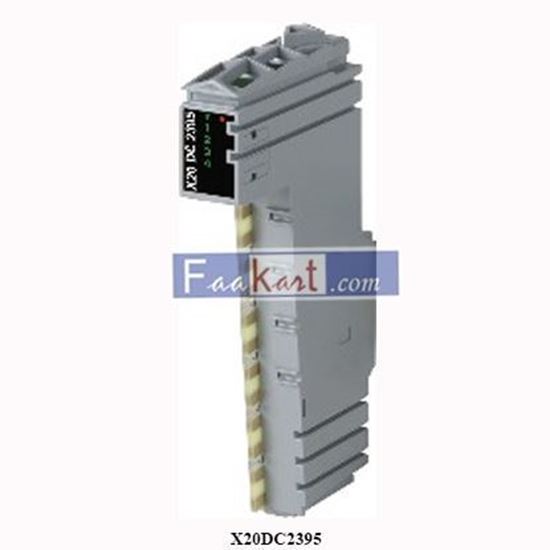

Picture of X20DC2395 | X20-DC2395 | B&R multifunctional counter module

X20DC2395 | X20-DC2395 | B&R multifunctional counter module

X20DC2395 B&R 24 VDC encoder inputs- SSI, ABR, AB or event counters for inputs- Pulse width modulation for outputs- multifunctional counter module. It can be connected to one SSI encoder, one ABR encoder, two AB encoders or four event counters. Two outputs are available for pulse width modulation. The functions can also be mixed. 24 VDC and GND for encoder supply
Be the first to review this product
Manufacturer: B&R Automation
SKU: SHA3822
3,500.00 (SAR)
3,400.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

General information
Input voltage 24 VDC -15% / +20%
B&R ID code 0x1CD4
Status indicators I/O function per channel, operating state, module status
Diagnostics
Module run/error Yes, using LED status indicator and software
Outputs Yes, using LED status indicator and software (output state)
Power consumption
Bus 0.01 W
Internal I/O 1.4 W
Additional power dissipation caused by actuators (resistive) [W] -
Type of signal lines Shielded lines must be used for all signal lines.
Certifications
CE Yes
UKCA Yes
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL cULus E115267
Industrial control equipment
HazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNV Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)
LR ENV1
KR Yes
ABS Yes
BV EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deck
EAC Yes
KC Yes
Incremental encoders
Quantity 2
Encoder inputs 24 V, asymmetrical
Counter size 16/32-bit
Input frequency Max. 100 kHz
Evaluation 4x
Encoder power supply Module-internal, max. 600 mA
Overload characteristics of encoder power supply Short-circuit proof, overload-proof
