Picture of WTB140-P430 Sick Background Suppression Photoelectric Sensor 1079712

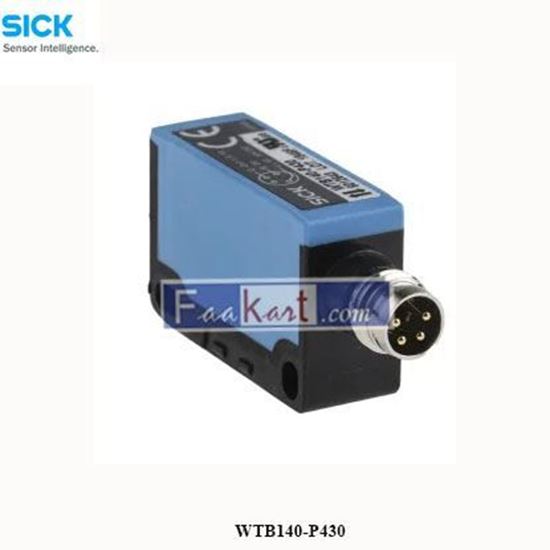

WTB140-P430 Sick Background Suppression Photoelectric Sensor 1079712

Sick Background Suppression Photoelectric Sensor, Block Sensor, 2 → 500 mm Detection Range
Be the first to review this product
Manufacturer: Sick
SKU: PCM1283
545.00 (SAR)
351.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Sick Photoelectric Sensor - WTB140-P430


Sick's W14 photoelectric proximity sensor is a sensor that is brought to you in a robust housing, suitable for use in a wide range of applications within industrial environments. Created and designed to detect and measure physical objects or quantities through emitting a field or beam of electromagnetic radiation, an object is detected through measuring alteration in the return. This photoelectric proximity sensor forms part of Sick's W140 series of sensors that feature background suppression. They provide reliable detection of dark objects in front of a light background.

Features & Benefits


• Scanning distances are adjustable via a potentiometer
• Dimensions of the sensor are W11mm x H31mm x D20mm
• The housing design is in a plastic, PBT, rectangular shape - comprised of a strong and robust material
• Wavelength is 680 nm
• Light and dark switching modes via a rotary switch
• The enclosure has an IP rating of IP67, this means that the enclosure is protected against dust and is completely dust-tight. This rating also means that the enclosure has moisture protection against full immersion for up to 30 minutes at depths between 15cm and 1m
• Red lights as an alignment aid
• PNP open collector

Specifications

Attribute Value
Sensor Style Block
Detection Type Background Suppression
Detection Range 2 → 500 mm
Output Type PNP
Electrical Connection M8 4 Pin Connector
Maximum DC Voltage 30V
Light Source LED
IP Rating IP67
Maximum Current 100 mA
Response Time <lteq/>0.5 ms
Series W14
Maximum Operating Temperature +55°C
Mounting Type Panel Mount
Housing Material PBT
Minimum Operating Temperature -25°C
