  • VTF180-2P42417 Sick Photoelectric proximity switch energetic 6037480

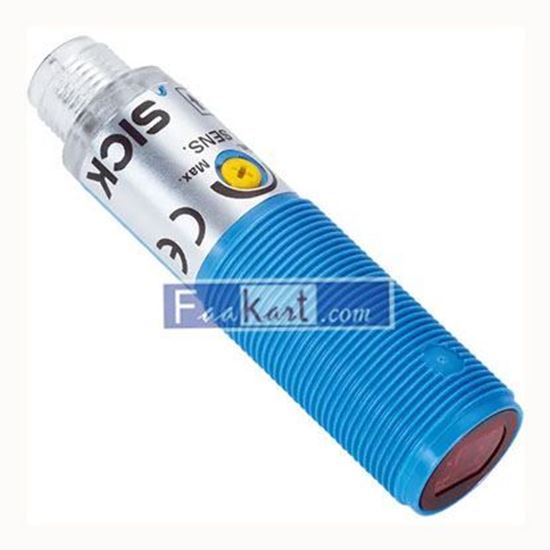

Picture of VTF180-2P42417 Sick Photoelectric proximity switch energetic 6037480

VTF180-2P42417 Sick Photoelectric proximity switch energetic 6037480

VTF180-2P42417 Photoelectric proximity switch energetic, scanning distance 100mm, potentiometer, PNP, L.On/D.On output, connector M12, 4-pin, optic axis axial
Be the first to review this product
Manufacturer: Sick
SKU: PCM1080
555.00 (SAR)
449.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

    • Lowest-cost M18 housing sensor on the market
    • Sensing distance up to 140 mm
    • Bright power and signal LEDs with 360° visibility
    • High switching frequencies up to 1000 Hz
    • Available in a metal housing for applications in harsh environments
    • Optical axis selectively axial or radial (90°)
    • Wide product portfolio solves a broad range of applications

Your benefits

  • Lowest-cost M18 cylindrical sensor on the market reduces installation costs
  • Bright red sender LED simplifies alignment and saves installation time
  • Bright power and signal LEDs with 360° visibility offer quick and simple troubleshooting, reducing maintenance time and costs
  • The flat and smooth lens reduces the collection of dust and dirt, ensuring safe operation with less maintenance and fewer costs
Features
Sensor/detection principle: Photoelectric proximity sensor, Background blanking
Housing design (light emission): Cylindrical, straight
Housing length: 69.8 mm
Thread diameter (housing): M18 x 1
Optical axis: Axial
Sensing range max.: 1 mm ... 140 mm 1)
Sensing range: 1 mm ... 100 mm 2)
Type of light: Visible red light
Light source: LED 3)
Wave length: 645 nm
Focus: Focused, focus approx. 7 mm at 60 mm
Adjustment: Potentiometer, 270°
Light spot size (distance): Ø 8 mm (100 mm)
1) 2) Object with 90 % reflectance (referred to standard white, DIN 5033)  3) Average service life of 100,000 h at TA = +25 °C
Mechanics/electronics
Supply voltage: 10 V DC ... 30 V DC 1)
Ripple: ± 10 % 2)
Power consumption: ≤ 30 mA 3)
Switching output: PNP, open collector 4)
Switching mode: Light/dark-switching 5)
Switching mode selector: Selectable via L/D control wire
Output current Imax.: ≤ 100 mA
Response time: ≤ 0.5 ms 6)
Switching frequency: 1,000 Hz 7)
Connection type: Connector M12, 4-pin
Circuit protection: A, B, D 8) 9) 10)
Protection class: III
Weight: 18 g
Housing material: Plastic, PBT/PC
Optics material: PMMA
Enclosure rating: IP 67
Items supplied: Fastening nuts (2 x)
Special feature: Focused optics
Ambient operating temperature: -25 °C ... +55 °C
Ambient storage temperature: -40 °C ... +70 °C
Signal voltage PNP HIGH/LOW: Approx. VS - 1.8 V / 0 V
1) Limit values, operation in short-circuit protected network max. 8 A  2) May not exceed or fall short of VS tolerances  3) Without load  4) 5) Control wire open: dark-switching D.ON  6) Signal transit time with resistive load  7) With light/dark ratio 1:1  8) A = VS connections reverse-polarity protected  9) B = inputs and output reverse-polarity protected  10) D = outputs overcurrent and short-circuit protected
