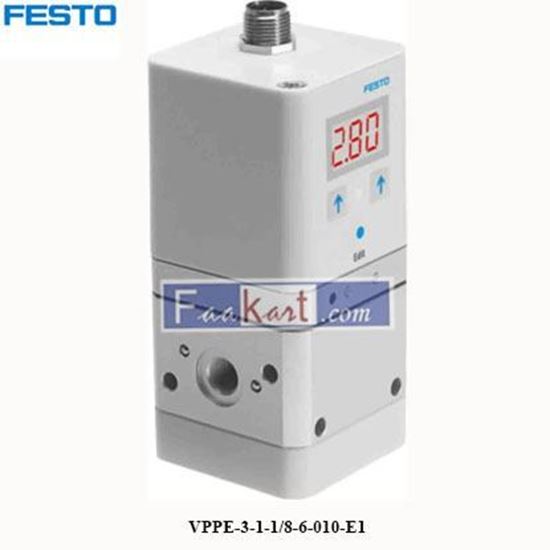

VPPE-3-1-1/8-6-010-E1 Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 557772

Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 557772

Manufacturer: Festo

SKU: PCM1271

Old price: 2,345.00 (SAR)

Price: 1,065.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

More Information
Manufacturer	FESTO
Model No.	VPPE-3-1-1/8-6-010-E1(557772)
RoHS	yes
Nominal width ventilation [mm]	5
Pressure regulator range	0.006 - 0.6 Mpa
Normal nominal flow	800 L/min
Operating medium	Compressed Air to ISO 8573-1:2010 [7:4:4] Inert Gases
Actuation type	Electrical
installation position	Arbitrary Preferentially Standing
Construction set up	Pre-Controlled Membrane Control Valve
Safety instructions	Safety Position VPPE: For Supply Line Break, the Output Pressure is Retained Uncontrolled
Valve function	3-way proportional pressure regulator valve
electrical connection	M12 5 pin Plug
Signal range analogue output	0 - 10 V
Design of display	3 digit LED display
Operating pressure	6 to 8 bar
Operating Voltage Range	21.6 - 26.4 V DC
Max Current Consumption	160 mA
Rated Power(Watt)	4.2
Maximum Working Temp	10 - 60 °C
Housing material	Aluminium wrought alloy anodized
Material	Copper and PTFE-free, RoHs Compliant
Protection class	IP65
Weight(kg)	0.400000
