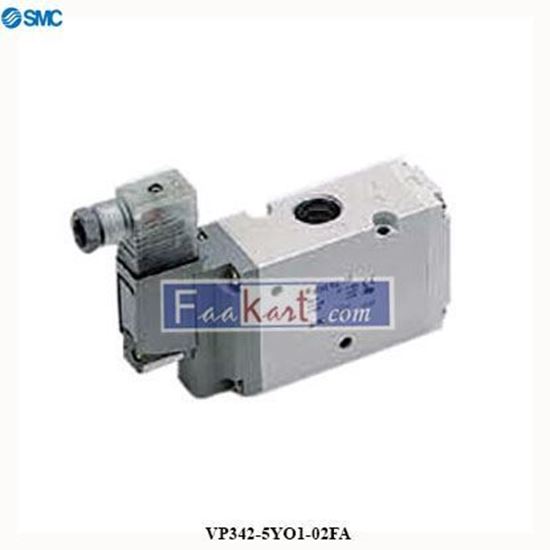

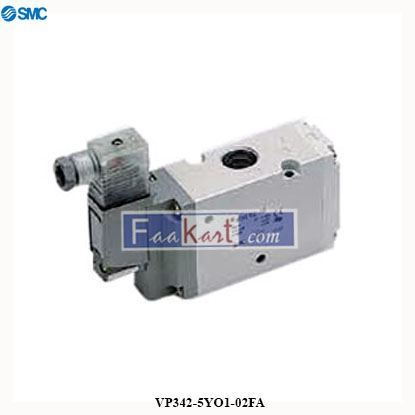

VP342-5YO1-02FA SMC valve, sol, VP3/5/7 SOL VALVE 3-PORT

High flow capacity:Cv1.0 (VP300), Cv2.3 (VP500), Cv4.0 (VP700). Low power consumption: 1.8W(DC).Possible to use as either selector valve or divider valve.Changeable from normallyclosed style to normally open style. Vacuum applicable: Up to –101.2kPa.

Be the first to review this product

Manufacturer: SMC

SKU: PCM1613

Old price: 435.00 (SAR)

Price: 316.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Additional information

Weight	0.181 kg
Dimensions	61 × 91 × 0.181 mm
Brand	SMC
Body Style	2 (Body ported)
Valve Option	Standard (Internal pilot)
Pressure Specification	Standard (0.7 MPa)
Coil Specification	Standard
Rated Voltage	5 (24V DC)
Electrical Entry	YO [DIN terminal, Without connector (EN175301-803B)]
Light and Surge Voltage Suppressor	None
Manual Override	Non-locking push style
Port Size	02 (1/4)
Thread	F [G (PF)]
Actuation	A (Normally closed)
Option	None

Product tags

valve (385)

Item	Unit Price	Unit Tax	Subtotal	Action
VP342-5YO1-02FA SMC valve, sol, VP3/5/7 SOL VALVE 3-PORT	316.00 (SAR)	47.40	363.40 (SAR)
