VN-07-M-I3-PQ2-VT2 Festo Vacuum generator 193556

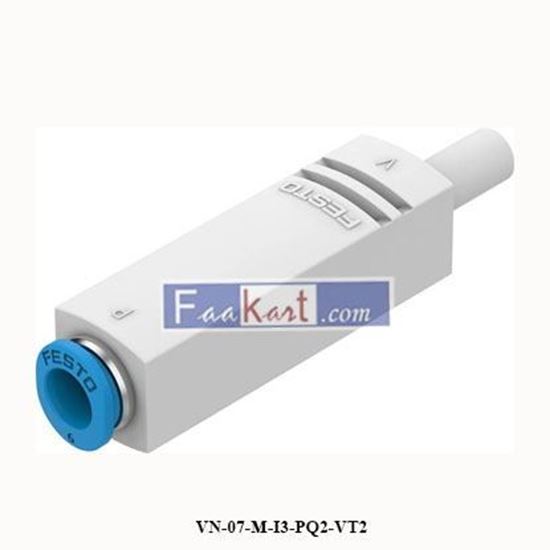

VN-07-M-I3-PQ2-VT2 (193556) vacuum generator

Manufacturer: Festo

SKU: PCM668

Old price: 260.00 (SAR)

Price: 140.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Properties

Nominal width laval nozzle [mm]	0,70
Pitch dimension [mm]	13,0
installation position	arbitrary
Ejector characteristic	in-line High vacuum
Construction set up	straight shape
Operating pressure for max. suction volume flow [bar]	7,0
Operating pressure [bar]	1 to 8
Operating pressure for max. vacuum [bar]	5,8
max. vacuum [%]	86
Nominal operating pressure [bar]	6
Max. suction volume current against atmosphere [l/min]	13,5
Venting time for nominal operating pressure [s]	2,00
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation not possible
Corrosion resistant class KBK	1 - low corrosion stress
Medium temperature [°C]	0 to 60
ambient temperature [°C]	0 to 60
Product weight [g]	12
Fastening type	pipe installation
Pneumatic connection 1	QS-6
Pneumatic connection 3	Not recorded
vacuum connection	Plug sleeve QS-6
Material information	Copper and PTFE-free RoHs compliant
Seals material	NBR
Capture nozzle material	POM
Housing material	POM reinforced
Jet nozzle material	Aluminium wrought alloy
Screw connection material	brass nickel-plated
