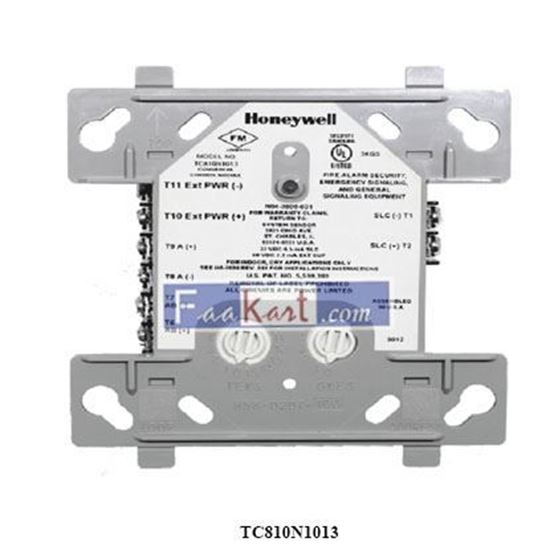

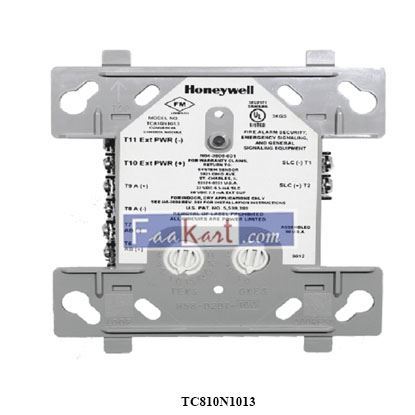

TC810N1013 Honeywell Intelligent Control Module

The TC810N1013(CDN) Addressable Control Module provides Honeywell intelligent fire alarm control panels a circuit for Notification Appliances (horns, strobes, speakers, etc.). Addressability allows the TC810N1013(CDN) to be activated, either manually or through panel programming, on a select (zone or area of coverage) basis.

• Built-in type identification automatically identifies these devices to the control panel.
• Internal circuitry and relay powered directly by two-wire SLC loop. The TC810N1013(CDN) module requires power (for horns, strobes, etc.), or audio (for speakers).
• Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.
• LED blink may be deselected globally (affects all devices).
• High noise immunity (EMF/RFI).
• The TC810N1013(CDN) may be used to switch 24-volt NAC power, audio (up to 70.7 Vrms).
• Wide viewing angle of LED.
• SEMS screws with clamping plates for wiring ease.
• Direct-dial entry of address 01– 159 for FlashScan loops, 01 – 99 for CLIP mode loops.
• Speaker, and audible/visual applications may be wired for Class B or A (Style Y or Z).
