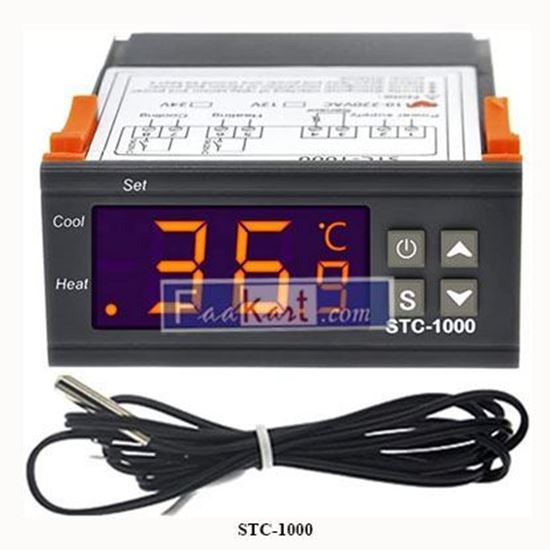

STC-1000 GENERIC Digital Temperature Controller Thermostat Module

STC-1000 220V AC Digital Temperature Controller Thermostat Module is an Thermoregulatory incubator Relay Heating and Cooling device, capable of handling up to 10A  of current which has inbuilt Switching modes that can switch between cooling and heating elements respectively. The temperature setting can be done on the control panel board for different values and calibrating the temperatures, The refrigerating control output has delay protection and alarm function when temperature exceeds temperature set limit or when sensor has an error error. All parameter setting can be saved in the internal memory even when there is power down.

Technical Parameters:

• Temperature measuring range: -50 ° C ~ 99 ° C
• Resolution: 0.1 ° C;
• Accuracy:+- 1° C (-50 ° C ~ 70 ° C);
• Sensor error delay: 1 minute
• Power supply: AC 110-220V 50/60Hz
• Power consumption: <3W;
• Sensor: NTC sensor (1PC);
• Relay contact capacity: Two Relay Cool 10A/220VAC; Heat 10A/220VAC;
• Ambient temperature: 0 ° C ~ 60 ° C;
• Storage temperature: -30 ° C ~ 75 ° C;
• Relative humidity: 20% ~ 85% (No condensate)
