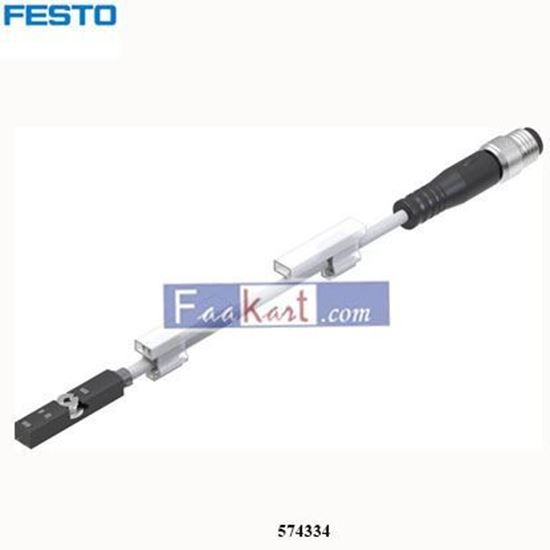

Picture of SMT-8M-A-PS-24V-E-0,3-M& (574334) FESTO proximity sensor

SMT-8M-A-PS-24V-E-0,3-M& (574334) FESTO proximity sensor

SMT-8M-A-PS-24V-E-0,3-M& (574334) FESTO proximity sensor
Be the first to review this product
Manufacturer: Festo
SKU: PCM1280
145.00 (SAR)
99.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Properties
Design For T-slot
Based on standard EN 60947-5-2
Permission RCM mark
c UL us - Listed (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directive
acc. to EU-RoHS Directive
KC-mark KC-EMV
Special features Oil resistant
Material information halogen free
Copper and PTFE-free
RoHs compliant
Measured parameter Position
Measurement principle Magnetoresistive
ambient temperature [°C] -40 to 85
Repeatability [mm] 0,2
Control output PNP
Switching element function NO contact
Switch on time [ms] <= 1,3 ms
Switch off time [ms] <= 1,4 ms
Max. switching frequency [Hz] 180
Max. output current [mA] 100
Max. output current in fastening sets [mA] 100
Max. switching capacity DC [W] 2,8
Max. switching capacity DC in fastening sets [W] 2,8
Voltage drop [V] < 1,5 V
Short circuit resistance yes
Overload resistant Available
Rated operating voltage DC [V] 24
Operating voltage range DC [V] 5 to 30
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Cable with plug
Electrical connection 1, connection technology M8x1 A coded to EN 61076-2-104
Electrical connection 1, number of pins / wires 3
Electrical connection 1, fastening type Screw lock
Connection outlet direction along
Test conditions line Bending radius strength to Festo standard
Cable track: 5 million cycles, bending radius 28 mm
Test conditions on request
Torsional strength > 300,000 cycles, ±270°/0.1 m
Cable length [MTR] 0,3
Line properties Cable track+robot
Cable shield colour Grey
Cable sleeve material TPE-U(PUR)
Fastening type Insertable from above into the slot
Permanently screwed
Max. tightening torque [Nm] 0,6
installation position arbitrary
Product weight [g] 8,9
Housing colour black
Housing material High-alloyed stainless steels
PA reinforced
brass nickel-plated
Switching status indicator LED yellow
Functional reserve display LED orange
Ambient temperature for moving cable placements [°C] -20 to 85
Protection category IP65
IP68
IP69K
