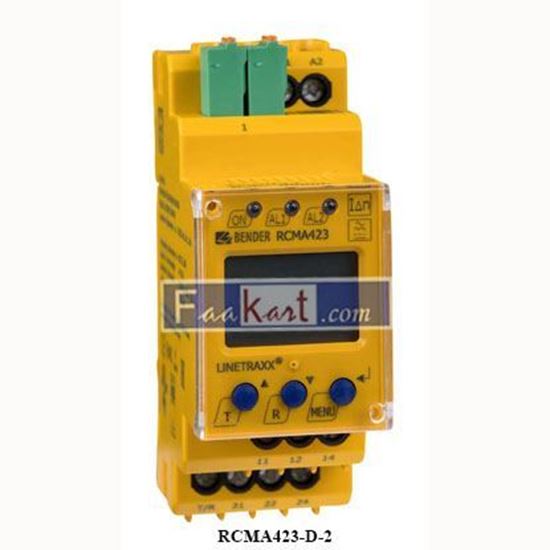

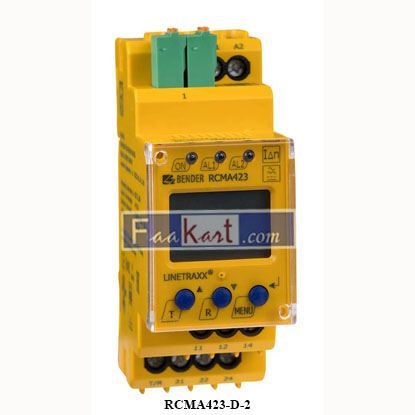

Picture of RCMA423-D-2 LINETRAXX Bender B74043025W

RCMA423-D-2 LINETRAXX Bender B74043025W

Bender LINETRAXX® RCMA423-D-2 B74043025W
Be the first to review this product
SKU: PCM1189
4,675.00 (SAR)
3,439.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

LINETRAXX® RCMA423

  • AC/DC sensitive measured value acquisition type B
  • Adjustable response values
  • For protection of persons, fire protection, plant protection

The AC/DC sensitive residual current monitor RCMA423 is designed for monitoring earthed power supply systems (TN and TT systems) where smooth DC fault currents or residual currents continuously greater than zero may occur. These are in particular loads containing six-pulse rectifiers or one way rectifiers with smoothing, such as converters, battery chargers, cons­truction site equipment with frequency-controlled drives. Currents in single conductors can also be monitored by RCMA423.

The prewarning stage (50…100 % of the set response value IΔn2) allow to distinguish between prewarning and alarm. Since the values are measured with measuring current transformers, the device is nearly independent of the load current and the nominal voltage of the system.


Features

  • AC/DC sensitive residual current monitor Type B acc. to IEC 62020 and IEC/TR 60755
  • r.m.s. value measurement (AC+DC)
  • Two separately adjustable response values 30 mA…3 A
  • Frequency range 0…2000 Hz
  • Start-up delay, response delay and delay on release
  • Digital measured value display via LC display
  • Measured value memory for operating value
  • CT connection monitoring
  • LEDs: Power On, Alarm 1, Alarm 2
  • Internal/external test/reset button
  • Two separate alarm relays (one changeover contact each)
  • N/O or N/C operation and fault memory behaviour selectable
  • Continuous self monitoring
  • Multi-functional LC display
  • Password protection for device settings
  • Sealable transparent cover
  • Push-wire terminal (two terminals per connection)
  • Two-module enclosure (36 mm)

Applications

  • AC/DC sensitive residual current monitoring in earthed two, three or four conductor systems (TN and TT systems)
  • Monitoring of variable-speed drives, UPS systems, construction site equipment, printing machines, battery systems, laboratory equipment, wood working machines, MF welding systems, furniture industry, medical electrical equipment, etc.
  • AC/DC sensitive current monitoring of single conductors de-energised under normal conditions (e.g. N and PE conductors)
