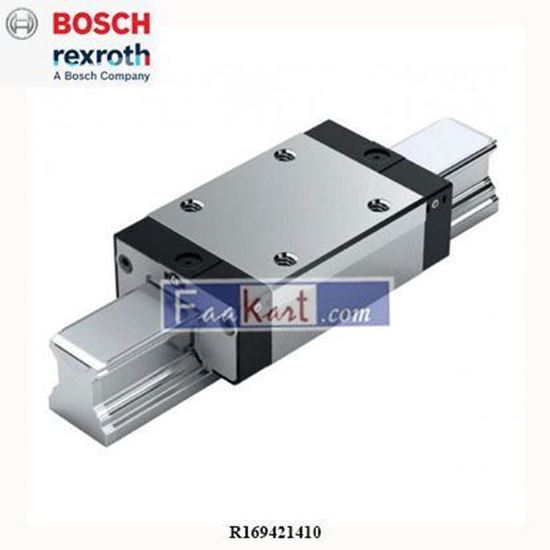

Picture of R169421410 BOSCH REXROTH Ball runner block KWC-025 -SNN-C1-N-2

R169421410 BOSCH REXROTH Ball runner block KWC-025 -SNN-C1-N-2

Ball runner block Bosch-Rexroth R169421410
Be the first to review this product
Manufacturer: Bosch Rexroth
SKU: PCM1555
655.00 (SAR)
462.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications



  • Area of application: For restricted upward and longitudinal space
  • Maximum precision
  • Patented entry zone increases the travel accuracy up to a factor of six
  • Significantly reduced frictional oscillations and low friction level, particularly under external load
  • Long-term lubrication is possible over several years



Ball runner block CS, made of Carbon steel

SizePreload classSealLubricationAccuracy classWeight
25 C1 SS No initial lubrication N 451g

a) For O-ring
Size 20 - 25: Ø 5 · 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
b) Lube nipple, size 20 - 25:
Funnel-type lube nipple DIN 3405-B M3x5, B2 = 8 mm
Lube port with additional anti-twist feature.
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
The lube nipple is included in the scope of delivery (not installed).
Size 20: Connection is possible on end-face.
Size 25: Connection is possible on all sides.

V1   7.50 mm
A1   24 mm
A3   12.50 mm
B1   57.80 mm
E2   35 mm
E9   8.50 mm
H1   26.50 mm
Dimension H2 without cover strip   24.25 mm
K2   17 mm
K4   4.10 mm
N6   15.2 mm ±0.5
ØS5   7 mm
T   60 mm
A   48 mm
A2   23 mm
B   81 mm +0.5
E1   35 mm
E8   38.30 mm
H   33 mm
Dimension H2 with cover strip   24.45 mm
K1   16.60 mm
K3   4.10 mm
N3   7 mm
S2   M6
S9   M3x5
