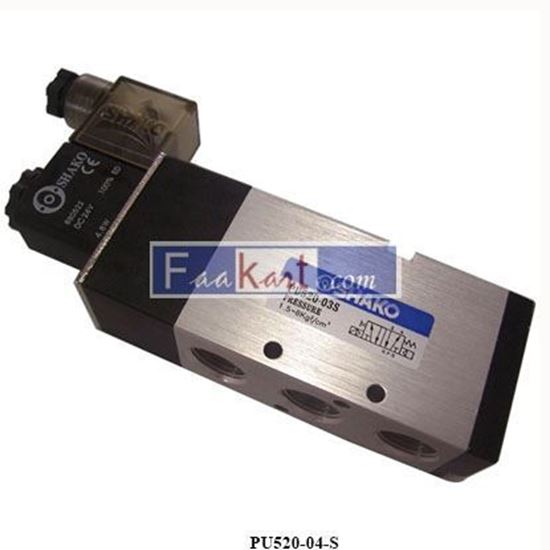

Picture of PU520-04S 5/2-Way Shako Single Pilot Pneumatic Solenoid Valve

PU520-04S 5/2-Way Shako Single Pilot Pneumatic Solenoid Valve

The Shako PU520-04S is a highly reliable, medium-to-heavy duty 5-way, 2-position (5/2) single pilot pneumatic solenoid valve. Engineered for high flow capacity and industrial longevity, this straight-acting directional control valve governs the intake, exhaust, and continuous cycle directions of double-acting pneumatic cylinders or actuators. Featuring a heavy-duty anodized aluminum body, the PU520-04S delivers high wear resistance and low internal friction.It comes equipped with a lockable manual override for effortless setup, maintenance testing, and manual troubleshooting. The "S" designation denotes a single solenoid layout operating with a responsive spring return mechanism, ensuring safe, default repositioning if electrical control is dropped
Be the first to review this product
Manufacturer: Shako
Availability: 3 in stock
SKU: ACAI9260817
219.00 (SAR)
140.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Feature

Value

Manufacturer

Shako

Model Code

PU520-04S (Single Solenoid Type)

Valve Function

5-Way, 2-Position (5/2 Way) Directional Control

Acting Type

Internal Pilot Operated / Spring Return

Pneumatic Port Size (In/Out)

G 1/2" Female Thread (Optional NPT/Rc available)

Exhaust Port Size

G 1/2"

Working Medium

40-Micron filtered compressed air (Lubricated or non-lubricated)

Operating Pressure Range

1.5 bar to 8 bar (21 psi to 116 psi)

Maximum Proof Pressure

10 bar (145 psi)

Flow Rate Area / Capacity

50 $mm^2$ ($C_v$ factor approx. 2.79)

Ambient & Fluid Temp Range

-10 °C to 60 °C (Non-freezing air states)

Available Coil Voltages

24V DC, 110V AC, 220V AC (50/60Hz)

Electrical Insulation Grade

Class F

Enclosure Protection Rating

IP65 (Dust-tight and water-jet resistant)

Body Construction Material

Anodized Aluminum Alloy

Seal Elements Material

High-performance NBR / Viton optional

Manual Override Type

Slot-head, lockable mechanical turn
