Picture of P3-63/E EATON On-Off switch

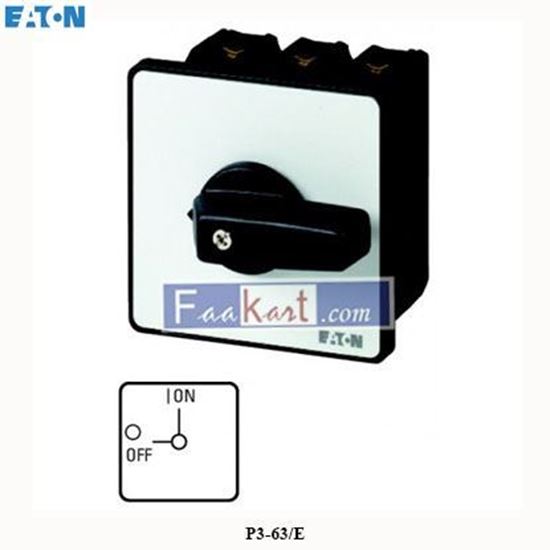

P3-63/E EATON On-Off switch

P3-63/E - On-Off switch, P3, 63 A, flush mounting, 3 pole, with black thumb grip and front plate
Be the first to review this product
Manufacturer: EATON ELECTRIC
SKU: PCM1245
345.00 (SAR)
211.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Product range
On-Off switch
Part group reference
P3

with black thumb grip and front plate
Information about equipment supplied
Auxiliary contact or neutral conductor fitted by user.
Number of poles
3 pole
Auxiliary contacts

0 N/O
0 N/C
Degree of Protection
Front IP65
Design
flush mounting
Motor rating AC-23A, 50 - 60 Hz [P]

400 V [P]
30 kW
Rated uninterrupted current [Iu]
63 A
Note on rated uninterrupted current !u
Rated uninterrupted current Iu is specified for max. cross-section.

TECHNICAL DATA

General

Standards
IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperatureOpen
-25 - +50 °C
Ambient temperatureEnclosed
-25 - +40 °C
Overvoltage category/pollution degree
III/3
Rated impulse withstand voltage [Uimp]
6000 V AC
Mechanical shock resistance
15 g
Mounting position
As required
Contacts

Mechanical variablesNumber of poles
3 pole
Mechanical variablesAuxiliary contacts
0 N/O
Mechanical variablesAuxiliary contacts
0 N/C
Electrical characteristicsRated operational voltage [Ue]
690 V AC
Electrical characteristicsRated uninterrupted current [Iu]
63 A
Electrical characteristicsNote on rated uninterrupted current !u
Rated uninterrupted current Iu is specified for max. cross-section.
Load rating with intermittent operation, class 12AB 25 % DF
2 x Ie
Load rating with intermittent operation, class 12AB 40 % DF
1.6 x Ie
Load rating with intermittent operation, class 12AB 60 % DF
1.3 x Ie
Short-circuit ratingFuse
80 A gG/gL
Rated short-time withstand current (1 s current) [Icw ]
1260 Arms
Note on rated short-time withstand current lcw
Current for a time of 1 second
Rated conditional short-circuit current [Iq]
4 (Load side)
100 (Supply side) kA
Switching capacity

cos ϕ rated making capacity as per IEC 60947-3
800 A
Rated breaking capacity cos ϕ to IEC 60947-3230 V
640 A
Rated breaking capacity cos ϕ to IEC 60947-3400/415 V
600 A
Rated breaking capacity cos ϕ to IEC 60947-3500 V
590 A
Rated breaking capacity cos ϕ to IEC 60947-3690 V
340 A
Safe isolation to EN 61140between the contacts
440 V AC
Safe isolation to EN 61140Current heat loss per contact at Ie
4.5 W
Lifespan, mechanical [Operations]
> 0.1 x 106
Maximum operating frequency [Operations/h]
1200
ACAC-3Rating, motor load switch [P]220 V 230 V [P]
15 kW
ACAC-3Rating, motor load switch [P]400 V 415 V [P]
30 kW
ACAC-3Rating, motor load switch [P]500 V [P]
30 kW
ACAC-3Rating, motor load switch [P]690 V [P]
30 kW
ACAC-3Rated operational current motor load switch230 V [Ie]
51 A
ACAC-3Rated operational current motor load switch400V 415 V [Ie]
55 A
ACAC-3Rated operational current motor load switch500 V [Ie ]
44 A
ACAC-3Rated operational current motor load switch690 V [Ie]
22.1 A
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]230 V [P]
18.5 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]400 V 415 V [P]
30 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]500 V [P]
45 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]690 V [P]
55 kW
ACAC-23ARated operational current motor load switch230 V [Ie]
63 A
ACAC-23ARated operational current motor load switch400 V 415 V [Ie]
63 A
ACAC-23ARated operational current motor load switch500 V [Ie]
63 A
ACAC-23ARated operational current motor load switch690 V [Ie]
63 A
DCDC-1, Load-break switches L/R = 1 msRated operational current [Ie]
63 A
DCDC-1, Load-break switches L/R = 1 msVoltage per contact pair in series
60 V
DCDC-23A, motor load switch L/R = 15 ms24 VRated operational current [Ie]
50 A
DCDC-23A, motor load switch L/R = 15 ms24 VContacts
1 Quantity
DCDC-23A, motor load switch L/R = 15 ms48 VRated operational current [Ie]
50 A
DCDC-23A, motor load switch L/R = 15 ms48 VContacts
2 Quantity
DCDC-23A, motor load switch L/R = 15 ms60 VRated operational current [Ie]
50 A
DCDC-23A, motor load switch L/R = 15 ms60 VContacts
2 Quantity
DCDC-23A, motor load switch L/R = 15 ms120 VRated operational current [Ie]
25 A
DCDC-23A, motor load switch L/R = 15 ms120 VContacts
3 Quantity
Control circuit reliability at 24 V DC, 10 mA [Fault probability]
< 10-5,< 1 failure in 100,000 switching operations HF
Terminal capacities

Solid or stranded
1 x (2,5 - 35)
2 x (2,5 - 10) mm2
Flexible with ferrules to DIN 46228
1 x (1.5 - 25)
2 x (1.5 - 6) mm2
Terminal screw
M5
Tightening torque for terminal screw
3 Nm
Technical safety parameters:

Notes
B10d values as per EN ISO 13849-1, table C1
Rating data for approved types

ContactsRated operational voltage [Ue]
600 V AC
ContactsRated uninterrupted current max.Main conducting pathsGeneral use
60 A
ContactsRated uninterrupted current max.Auxiliary contactsGeneral Use [IU]
10 A
ContactsRated uninterrupted current max.Auxiliary contactsPilot Duty
A 600
P 600
Switching capacityMaximum motor ratingSingle-phase120 V AC
3 HP
Switching capacityMaximum motor ratingSingle-phase200 V AC
7.5 HP
Switching capacityMaximum motor ratingSingle-phase240 V AC
10 HP
Switching capacityMaximum motor ratingThree-phase200 V AC
15 HP
Switching capacityMaximum motor ratingThree-phase240 V AC
15 HP
Switching capacityMaximum motor ratingThree-phase480 V AC
40 HP
Switching capacityMaximum motor ratingThree-phase600 V AC
50 HP
Short Circuit Current RatingBasic Rating
10 kA
Short Circuit Current Ratingmax. Fuse
150 A
Terminal capacitySolid or flexible conductor with ferrule
14 - 2 AWG
Terminal capacityTerminal screw
M5
Terminal capacityTightening torque
26.5 lb-in

DESIGN VERIFICATION AS PER IEC/EN 61439

Technical data for design verification

Rated operational current for specified heat dissipation [In]
63 A
Heat dissipation per pole, current-dependent [Pvid]
4.5 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+50 °C
IEC/EN 61439 design verification

10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
