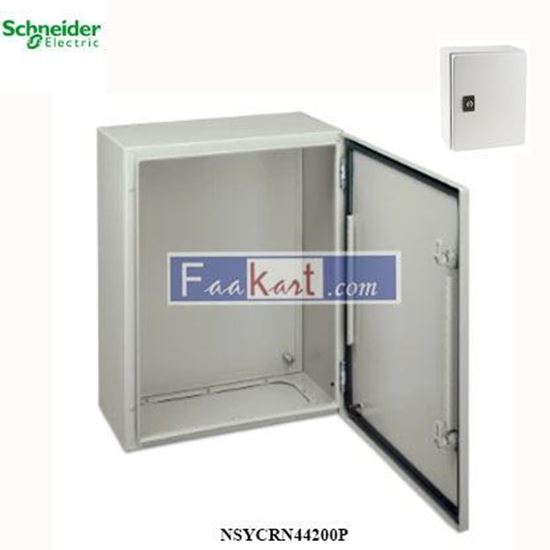

NSYCRN44200P Schneider Electric Electric Spacial CRN Series Steel Wall Box

IP66 Spacial CRN Enclosures

The range of Spacial CRN enclosures from Schneider Electric have a steel monobloc construction with a punched steel door. The sides are made from a single folded section and the back is welded with a double profile to form a protected sealed area. The Spacial CRN enclosures are painted externally and internally with a textured light grey RAL 7035 epoxy-polyester resin.

Features & Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Easily reversible door, fixed with metal hinges allowing the door to open to 120°
• 4 wall fixing drill holes sealed with plastic plugs to ensure the degree of protection
• Welded earth studs on door and body

Applications

The Spacial CRN enclosures are designed for electrical distribution, industrial automation and industrial control.

Spacial CRN / CRNG Steel Wall Box Enclosure Typical Applications.

• Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).

• Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).

• Electronics and Industrial networks (18 inch fixed or swing frame).
