Picture of NBN8-12GM50-E2-V1 PEPPERL+FUCHS Inductive sensor

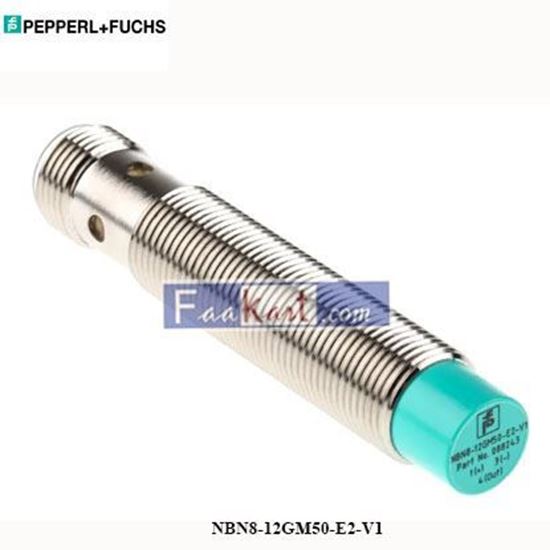

NBN8-12GM50-E2-V1 PEPPERL+FUCHS Inductive sensor

8 mm non-flush Increased operating distance Extended temperature range -40 ... +85 °C With increased sealing, protection class IP68 / IP69K E1-Type approval
Be the first to review this product
Manufacturer: Pepperl+Fuchs
SKU: PCM161
320.00 (SAR)
117.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 8 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 6.48 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm
Reduction factor rAl 0.5
Reduction factor rCu 0.45
Reduction factor r304 0.7
Reduction factor rBrass 0.5
Output type 3-wire
Nominal ratings
Operating voltage 7 ... 30 V
Switching frequency 0 ... 1200 Hz
Hysteresis typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 4 µA at 25 °C
No-load supply current ≤ 10 mA
Time delay before availability ≤ 100 ms
Switching state indicator Multihole-LED, yellow
