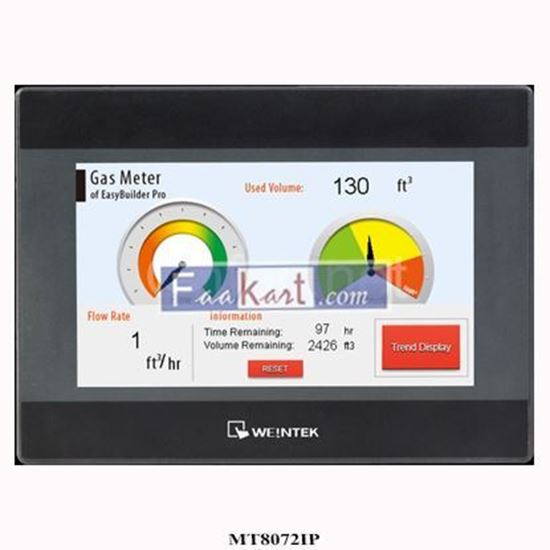

Picture of MT8072IP Weintek Human Machine Interface (HMI)

MT8072IP Weintek Human Machine Interface (HMI)

MT8072IP HMI with 7" TFT Display
Be the first to review this product
SKU: SHA3733
950.00 (SAR)
813.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

- touch screen, TFT color LCD
- 7.0" wide-screen size (800x480)
- ethernet, 10/100 base-T x 1
- COM1:RS-232,COM2:RS-485 2W/4W
- free tool software EasyBuilder Pro



Display Display 7,0" TFT LCD
Resolution (px) 800x480
Brightness (cd/m2) 300
Contrast Ratio 500:1
Backlight Type LED
Backlight Life Time >30000 hrs.
Colors 16,7M
Touch Panel Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Memory Flash (MB) 256
RAM (MB) 128
Processor Type Dual-core RISC
I/O Port SD slot N/A
USB Host USB 2.0 x 1
USB Client N/A
Ethernet 10/100 base-T x 1
COM port COM1:RS-232,COM2:RS-485 2W/4W
RTC Real time Clock Built-in (CR2032 3V lithium battery)
Power Input power 24 VDC ± 20%
Power consumption 450mA @ 24 V
Power Isolation Built-in
Voltage resistance 500 VAC (1 min.)
Isolation Resistance Exceed 50M Ohm at 500VDC
Vibration Endurance 10 to 25 Hz
(X,Y,Z direction 2G 30 minutes)
Specification Enclosure Plastik
Dimensions WxHxD 200.4 x 146.5 x 34mm
Panel Cutout 192 x 138mm
Weight Approx. 0,52 kg
Environment Protection Structure NEMA4 / IP65 Compliant Front Panel
Storage temperature -20 ~ 60 ° C (-4°~ 140 ° F)
Operating temperature 0 ~ 50 ° C (32°~ 122 ° F)
Relative Humidity 10 % - 90 % @ 40° C (non-condensing)
Certification CE CE
