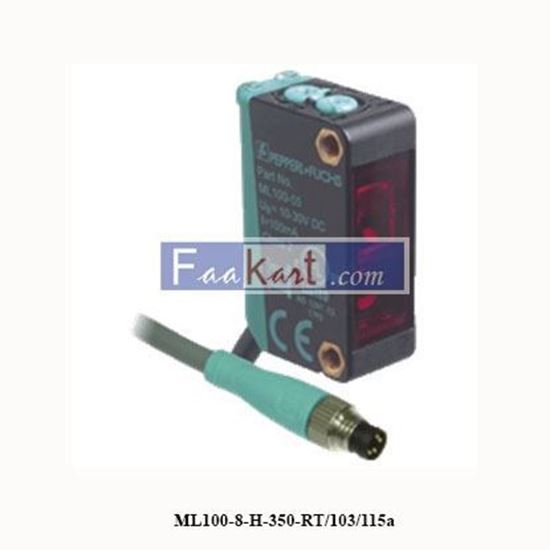

Picture of ML100-8-H-350-RT/103/115a Pepperl+Fuchs Background suppression sensor

ML100-8-H-350-RT/103/115a Pepperl+Fuchs Background suppression sensor

Triangulation sensor with background suppression, 350 mm adjustable detection range, red light, light/dark on, pnp output, fixed cable with M8 plug Miniature design Easy to use Very bright, highly visible light spot Full metal thread mounting Highly visible LEDs for Power ON and switching state Not sensitive to ambient light
Be the first to review this product
Manufacturer: Pepperl+Fuchs
SKU: NSRN296
850.00 (SAR)
351.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

General specifications
Detection range 5 ... 350 mm
Detection range min. 5 ... 30 mm
Detection range max. 5 ... 350 mm
Adjustment range 30 ... 350 mm
Reference target standard white, 100 mm x 100 mm
Light source LED
Light type modulated visible red light
Polarization filter no
Black-white difference (6 %/90 %) < 18 % at 350 mm
Diameter of the light spot approx. 20 mm at a distance of 350 mm
Opening angle approx. 4 °
Optical face frontal
Ambient light limit EN 60947-5-2:2007+A1:2012
Functional safety related parameters
MTTFd 860 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Operation indicator LED green: power on
Function indicator LED yellow: lights when object is detected
Control elements Sensing range adjuster
Control elements Light-on/dark-on changeover switch
Electrical specifications
Operating voltage 10 ... 30 V DC
Ripple max. 10 %
No-load supply current < 20 mA
Output
Switching type The switching type of the sensor is adjustable. The default setting is: light-on
Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA , resistive load
Voltage drop ≤ 1.5 V DC
Switching frequency 500 Hz
Response time 1 ms
