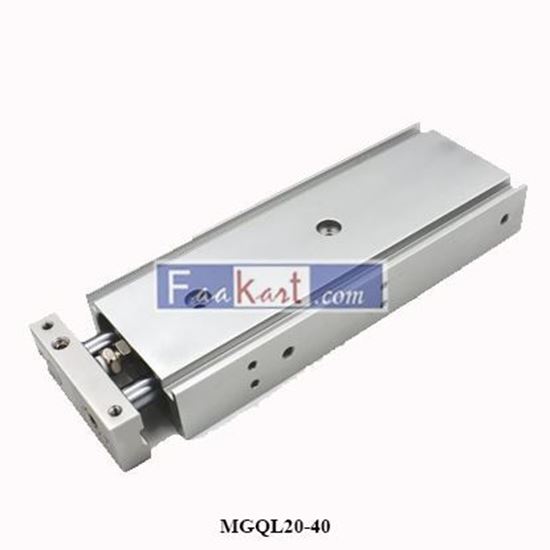

MGQL20-40 SMC Single Rod Guided Air Cylinder

SMC MGQL20-40 Single Rod Guided Air Cylinder, Heavy Duty Compact Guide Cylinder, 20mm Bore Dia, 1.5MPa Proof. Press
Manufacturer: SMC
SKU: RSMN499
493.96 (BHD)
421.17 (BHD)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specification:

  • bore diameter: 20 mm
  • proof pressure: +1.5 Mpa
  • stroke length: 40 mm
  • operating pressure range: +0.1 to +1 Mpa
  • guided cylinder type: Heavy Duty Compact Guide Cylinder
  • push force at 100 psi: 220 N
  • piston action: Double-Acting
  • pull force at 100 psi: 165 N
  • mounting type: Direct
  • operating temperature range: -10 to +60 °C
  • rod type: Single Rod
  • overall length: 114 mm
  • bearings: Ball Bushing Bearing
  • overall width: 74 mm
  • cushion type: Rubber Bumper
  • overall height: 36 mm
  • port type: 1/8 Female BSPT Threaded in
