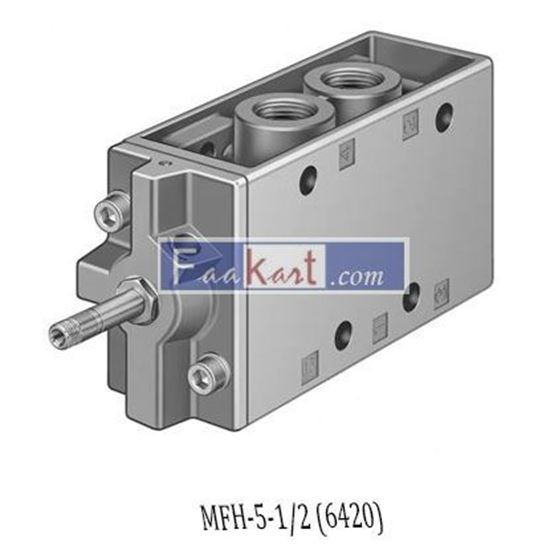

MFH-5-1/2 FESTO Solenoid valve - 6420

Valve function 5/2 monostable Type of actuation electrical Width 52 mm Standard nominal flow rate 3,700 l/min Operating pressure 2 ... 8 bar Design structure Poppet seat Type of reset mechanical spring Protection class IP65  Authorisation c UL us - Recognized (OL) Nominal size 14 mm Grid dimension 69 mm Exhaust-air function throttleable Sealing principle soft Assembly position Any Manual override detenting Type of piloting Piloted Flow direction non reversible Freedom from overlap No b value 0.32 Switching time off 150 ms Switching time on 21 ms Max. positive test pulse with logic 0 2,200 µs Max. negative test pulse with logic 1 3,700 µs Characteristic coil data See solenoid coil, to be ordered separately Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 1 - Low corrosion stress Storage temperature -20 ... 60 °C Medium temperature -10 ... 60 °C Ambient temperature -5 ... 40 °C Product weight 1,135 g Electrical connection Via F coil, must be ordered separately Mounting type Optional on manifold rail with through hole
