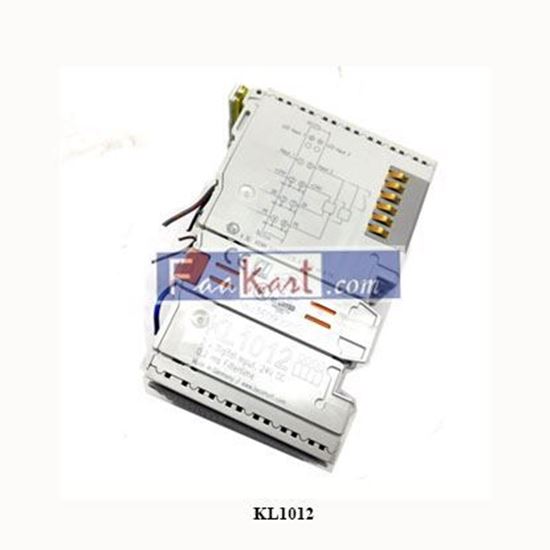

Picture of KL1012 BECKHOFF Bus Terminal

KL1012 BECKHOFF Bus Terminal

KL1012 | Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms The KL1012 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The bus terminal contains two channels that indicate their signal state by means of LEDs.
Be the first to review this product
Manufacturer: Beckhoff
SKU: NSRN1368
350.00 (SAR)
246.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical dataKL1012
Connection technology 4-wire
Specification EN 61131-2, type 1
Number of inputs 2
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage -3…+5 V
“1” signal voltage 15…30 V
Input filter typ. 0.2 ms
Input current typ. 5 mA
Current consumption K-bus typ. 3 mA
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 2 inputs
Configuration no address or configuration setting
Weight approx. 50 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all KSxxxx Bus Terminals
Approvals/markings CE, UL, ATEX, IECEx, DNV GL
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
