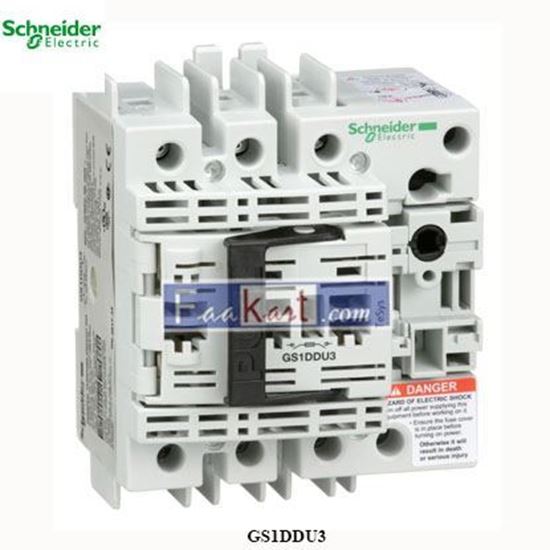

Picture of GS1DDU3 SCHNEIDER ELECTRIC Fused Switch

GS1DDU3 SCHNEIDER ELECTRIC Fused Switch

Fused Switch, 3PST, Class CC, 3 Fuse, 30 A, Screw
Be the first to review this product
Manufacturer: Schneider
SKU: PCM973
675.00 (SAR)
568.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Product Information


:

3PST

:

Class CC

:

3 Fuse

:

30A


:

Screw

:

3 Pole

:

TeSys
Specifications
Main
Range TeSys
Product name TeSys GS
Device short name GS1 DD
Product or Component Type Switch-disconnector-fuse
Device Application Protection
Design Compact
Poles description 3P
Protected poles description 3t
Contacts type and composition 3 NO
[Ith] conventional free air thermal current 30 A 104 °F (40 °C)
[Ie] rated operational current 30 A
Fuse type UL
Fuse size CC
Network type AC
DC
Network Frequency 50/60 Hz
Complementary
Type of operating handle External frontal
Direct frontal
Mounting Support Rail
Plate
[Ui] rated insulation voltage 690 V
[Uimp] rated impulse withstand voltage 8 kV
rated operational power in W 15 kW 400 V
18.5 kW 500 V
25 kW 690 V
Short-circuit withstand 5.5 kA
Mechanical durability 10000 cycles
electrical durability 6000 cycles
connections - terminals Power circuit lugs-ring terminals 0.00…0.01 in² (2…6 mm²)
tightening torque Power circuit 26.55 lbf.in (3 N.m)
Environment
Standards UL 489
CSA C22.2 No 5
Product Certifications LROS (Lloyds register of shipping)
LOVAG
ASEFA
IP degree of protection IP20 IEC 60529 with terminal cover)
Ambient Air Temperature for Operation -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
fire resistance 1760 °F (960 °C) body IEC 60695-2-1
Height 4.57 in (116 mm)
Width 3.82 in (97 mm)
Depth 3.29 in (83.5 mm)
Net Weight 1.32 lb(US) (0.6 kg)
Ordering and shipping details
Category 22640-IEC DISCONNECT-GS1,LK3
Discount Schedule I11
GTIN 3389110179538
Returnability Yes
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.88 in (12.400 cm)
Package 1 Width 5.67 in (14.400 cm)
Package 1 Length 7.09 in (18.000 cm)
Package 1 Weight 19.40 oz (550 g)
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 11.81 in (30.000 cm)
Package 2 Width 11.81 in (30.000 cm)
Package 2 Length 15.75 in (40.000 cm)
Package 2 Weight 10.75 lb(US) (4.875 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 64
Package 3 Height 29.53 in (75.000 cm)
Package 3 Width 23.62 in (60.000 cm)
Package 3 Length 31.50 in (80.000 cm)
Package 3 Weight 119.50 lb(US) (54.204 kg)
