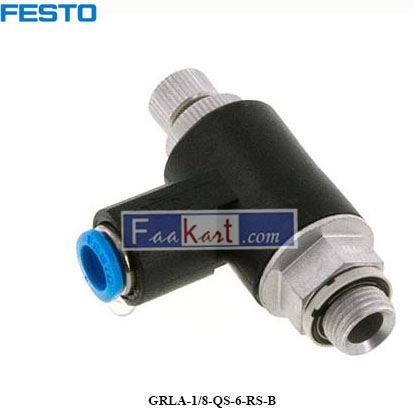

GRLA-1/8-QS-6-RS-B FESTO one-way flow control 162965

Manufacturer: Festo

SKU: PCM773

Old price: 145.00 (SAR)

Price: 47.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Properties

Valve function	Exhaust air flow control return function
Pneumatic connection 1	QS-6
Pneumatic connection 2	G1/8
Setting element	knurled screw
Fastening type	Screwable
Normal nominal flow in one-way flow control [l/min]	520
Normal nominal flow in check valve direction [l/min]	400 to 550
ambient temperature [°C]	-10 to 60
installation position	arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min]	720
Normal flow In check valve direction 6 -> 0 bar [l/min]	600 to 750
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Medium temperature [°C]	-10 to 60
Product weight [g]	25,0
Stud material	Aluminium wrought alloy
Material information	RoHs compliant
Seals material	NBR TPE-U(PU)
Regulation screw material	Brass
Swivel connection material	PBT reinforced
Operating pressure complete temperature range [bar]	0.2 to 10
Bearing temperature [°C]	-10 to 40
Permitted actuation moment regulation disc [Nm]	0,4
Actuation type	Manually
Nominal tightening torque [Nm]	3,5
Tolerance to nominal tightening torque	± 20 %
Sleeve material	POM
Knurled head material	Aluminium wrought alloy
