  • EL3112 BECKHOFF EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential
Picture of EL3112 BECKHOFF EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential

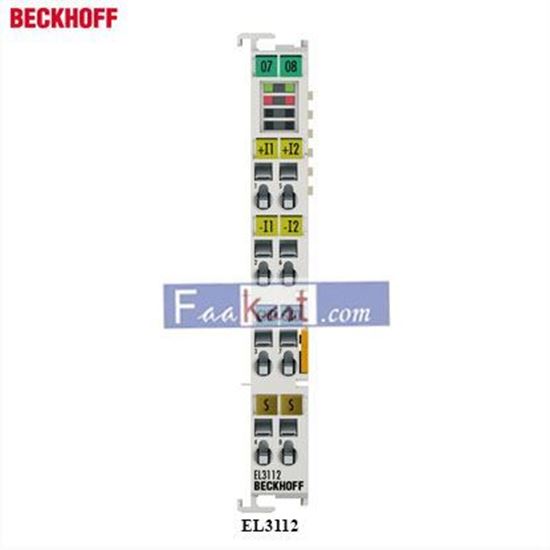

EL3112 BECKHOFF EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential

The EL3112 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitized to a resolution of 16 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3112 combines two channels in one housing. Overload condition is detected, and the terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition.
Be the first to review this product
Manufacturer: Beckhoff
SKU: PCM338
2,500.00 (SAR)
1,802.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical dataEL3112, ES3112
Number of inputs 2 (differential)
Power supply via the E-bus
Technology differential input
Signal type differential
Signal current 0…20 mA
Oversampling factor –
Input signal bandwidth see input filter
Distributed clocks yes
Distributed clock precision << 1 µs
Internal resistance typ. 85 Ω + diode voltage
Input filter limit frequency 5 kHz
Common-mode voltage UCM max. 10 V
Conversion time ~ 50 µs (fast mode ~ 35 µs)
Resolution 16 bit (incl. sign)
Measuring error < ±0.3 % (relative to full scale value)
Surge voltage resistance 35 V DC
Electrical isolation 500 V (E-bus/signal voltage)
Current consumption power contacts –
Current consumption E-bus typ. 170 mA
Bit width in the process image inputs: 8 byte
Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring
Weight approx. 55 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX
Ex marking II 3 G Ex nA IIC T4 Gc

Housing dataEL-12-8pinES-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²		 s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16		 s*: AWG 28…16,
st*: AWG 28…16,
f*: AWG 26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A
