Picture of E3JM-RM4T-G OMRON Photoelectric Sensors RELAY OUT TIMER 4m SENSING

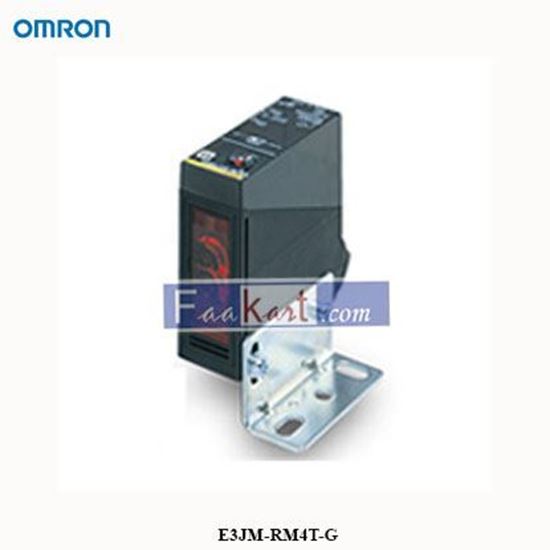

E3JM-RM4T-G OMRON Photoelectric Sensors RELAY OUT TIMER 4m SENSING

Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 4 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Terminal block models, Red LED (660 nm), Timer function
Be the first to review this product
Manufacturer: Omron
SKU: PCM1662
165.00 (SAR)
99.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Sensing method Retro-reflective with M.S.R. function
Sensing distance When using the E39-R1: 4 m
Light source Red LED (660 nm)
Connection method Terminal block models



SPECIFICATION:

Shape Square type
Sensing method Retro-reflective with M.S.R. function
Sensing distance When using the E39-R1: 4 m
Standard sensing object Opaque: 75 mm dia. min.
Directional angle 1 to 5°
Light source Red LED (660 nm)
Power supply voltage 24 to 240 VAC±10% 50/60 Hz
12 to 240 VDC±10% ripple (p-p) 10% max.
Power consumption 2 W max.
Control output Relay output (SPDT)
250 VAC 3 A (cosφ= 1) max.
5 VDC 10 mA min.
Life expectancy (relay output) Electrical: 100 thousand times or more (switching frequency 1800 times/hour)
Mechanical: 50 million times or more (switching frequency 18000 times/hour)
Operation mode Light-ON/Dark-ON selectable
Response time Operate or reset: 30 ms max.
Timer function Select from ON-delay, OFF-delay, or One-shot delay
0.1 to 5 s
Ambient illuminance Incandescent lamp: 3,000 lx max.
Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) -30 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) 45 to 85% (with no condensation)
Ambient humidity range (Strage) 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength 2000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Malfunction: 100 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP66
Connection method Terminal block models
Indicator Operation indicator (red)
Weight Package: Approx. 160 g
Accessories Instruction manual, Mounting bracket, Nut, Terminal protection cover, One set of cable connection nuts, Reflector
Material Case: ABS
Lens: Methacrylate resin
Cover: Polycarbonate
Mounting Bracket: Iron
