  • E2FM-X5D1-M1TGJ-T 0.3M OMRON Shielded, Cylinder type (with screw)

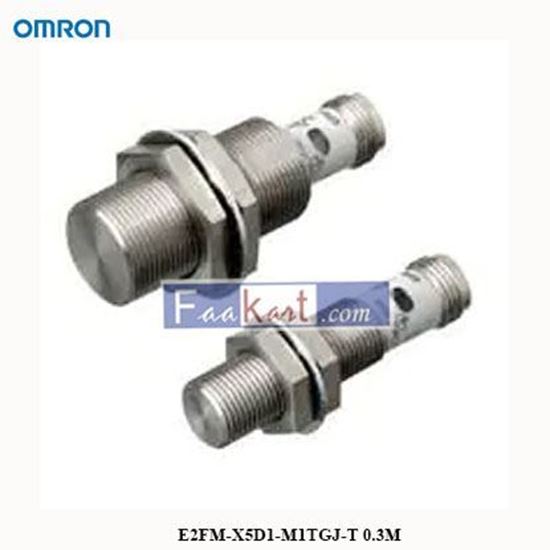

Picture of E2FM-X5D1-M1TGJ-T 0.3M OMRON Shielded, Cylinder type (with screw)

E2FM-X5D1-M1TGJ-T 0.3M OMRON Shielded, Cylinder type (with screw)

Shielded, Cylinder type (with screw) M18, DC 2-wire models, Sensing distance 5 mm ±10%, NO, No polarity, Prewired M12 smart click connector model Sensing head size M18 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 5 mm ±10% Setting distance 0 to 3.5 mm Operation mode NO
Be the first to review this product
Manufacturer: Omron
SKU: PCM882
1,250.00 (SAR)
1,076.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Sensing head size M18
Type Cylinder type (with screw), Shielded
Power source DC 2-wire models
Sensing distance 5 mm ±10%
Setting distance 0 to 3.5 mm
Differential distance 15% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 30 x 30 x 1 mm
Response frequency 100 Hz (Average value)
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Leakage current 0.8 mA max.
Control output (Switching capacity) 3 to 100 mA
Control output (Residual voltage) 3 V max. (Load current 100 mA max. with cable length of 2 m)
Indicator Operation indicator (red), Operation setting indicator (green)
Operation mode NO
Polarity No polarity
Protective circuit Output short-cut protection
Surge suppressor
Ambient temperature (Operating) -25 to 70 ℃
Ambient temperature (Storage) -25 to 70 ℃
Ambient humidity (Operating) 35 to 95% RH
Ambient humidity (Storage) 35 to 95% RH
Temperature influence ±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Connection method Prewired M12 smart click connector model (0.3 m)
Weight Package: Approx. 110 g
Material Case: Stainless steel (SUS303)
Sensing surface: Stainless steel (SUS303)
Clamping nuts: Stainless steel
Toothed washers: Iron zinc plating
Accessories Instruction manual
