Picture of DOP-107BV DELTA HMI touch screen 7 inch Human Machine Interface Display

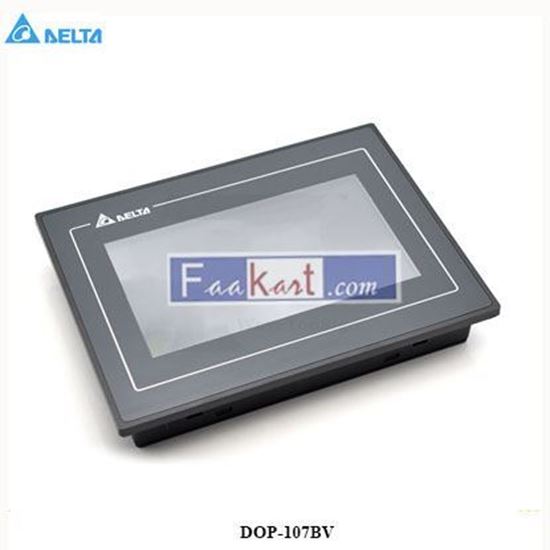

DOP-107BV DELTA HMI touch screen 7 inch Human Machine Interface Display

(6) Hardware specifications Model DOP-107BV Display Panel type 7″ TFT LCD (65535 colors) Resolution 800 x 480 pixels Backlight LED backlight (half-life under room temperature 25oC > 20,000 hours)*1 Display range 154.08 mm * 85.92 mm Brightness 400 cd / m² (Typ.) CPU ARM Cortex-A8 (800 MHz) Flash ROM 256 Mbytes RAM 256 Mbytes
Be the first to review this product
Manufacturer: Delta
SKU: PCM120
1,200.00 (SAR)
643.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Basic HMI
The Basic HMI features basic functions and easy installation for industrial applications. With IP55
waterproof protection, it is suitable for harsh environments.


Model: DOP-107BV

Display:  7" TFT LCD

Resolution (Pixels): 800 x 480

MCU: ARM Cortex-A8 (800MHz)

Flash ROM (Bytes): 256MB

RAM (Bytes): 256MB

Ethernet Interface:  None

USB: 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0

Serial COM Port:

COM1: RS-232 (supports hardware flow

control) / RS-485 ;

COM2: RS-422 / RS-485

RTC: Built-in

Certification: CE / UL

Waterproof Degree: IP65 / NEMA4

Operation Voltage: DC24V (please use isolated power supply)

Voltage Endurance:AC500V for 1 minute (between charging (DC24V terminal and FG terminals)

Backup Battery: 3V lithium battery CR2032 x 1

Backup Battery Life: It depends on the temperature used and the conditions of usage, about 3 years or more at 25 degree.
