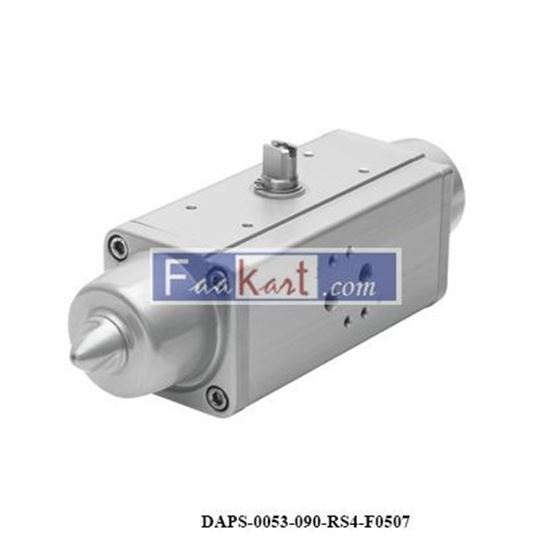

Picture of DAPS-0053-090-RS4-F0507 FESTO Single Action Rotary Actuator

DAPS-0053-090-RS4-F0507 FESTO Single Action Rotary Actuator

DAPS-0053-090-RS4-F0507 ACTUATOR,PNEUMATIC, 5.6 TO 8.4 BAR, SINGLE ACTING, ATEX, FESTO
Be the first to review this product
Manufacturer: Festo
SKU: CMX00210
1,999.00 (SAR)
1,574.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Position drive dimensions 0053
Flange drilling screen F05
F07
Swivel angle [deg] 90
Adjustable range end position at 0° [deg] -1 to 9
Shaft connection Depth [mm] 19,3
Standard connection to fitting ISO 5211
Dampening No dampening
installation position arbitrary
Principles of operation single action
Construction set up Joch kinematics
Position detection without
Closing direction Right closing
Valve connection corresponds to standard VDI/VDE 3845 (NAMUR)
Safety Integrity Level (SIL) product can be used in SRP/CS up to SIL 2 Low Demand
product can be used in SRP/CS up to SIL 2 High Demand
Operating pressure [bar] 5.6 to 8.4
Nominal operating pressure [bar] 5,6
CE certificate (see declaration of conformity) to EU EX protection directive (ATEX)
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex h IIC T6...T3 Gb X
Ex ignition protection type dust Ex h IIIC T85°C...T200°C Db X
Ex ambient temperature -20°C <= Ta <= +60°C
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion-resistant class KBK 3: severe corrosion stress
ambient temperature [°C] -20 to 80
Rotary torque for nominal operating pressure and 0° pivot angle [Nm] 53,0
Rotary torque for nominal operating pressure and 50° pivot angle [Nm] 26,0
Rotary torque for nominal operating pressure and 90° pivot angle [Nm] 35,0
Information about torque The operating torque of the actuator may not be higher than the maximum permitted torque listed in ISO 5211, which is related to the size of the fastening flange and the coupling.
Air consumption: 6 bar per cycle (0°–90°) [LTR] 2,10
Product weight [g] 3.000
Shaft connection T17
Pneumatic connection G1/8
Material information RoHs compliant
Cover material Aluminum wrought alloy
Seals material FKM
NBR
PUR
Housing material Aluminum wrought alloy
Screws material High-alloyed steel
Shaft material High-alloyed steel
Material number: shaft 1.4305
Adjustable range end position at 90° [deg] 81 to 91
Information about the adjustment range of the end positions Selectively, one end position is adjustable
Connection pressure for spring strength [bar] 5,6
Spring force torque at a swivel angle 0° [Nm] 35,0
Spring force torque at a swivel angle 50° [Nm] 26,0
Spring force torque at 90° [Nm] 53,0
Spring strength 4
