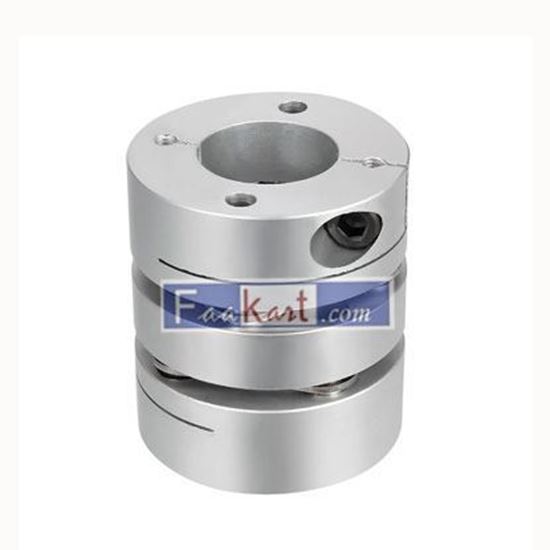

Clamp Tight Motor Shaft 2 Diaphragm Coupling Coupler 12mmx22mm Unique Bargains

Clamp Tight Motor Shaft 2 Diaphragm Coupling Coupler 12mmx22mm
Manufacturer: Unique Bargains
SKU: MUBUY111
325.00 (SAR)
225.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Flexible couplings are used to link 2 rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from 1 shaft to the other.

Most flexible couplings consist of 2 hubs and 1 middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the 2 shafts.

Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from 1 shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from 1 type of misalignment to another.

Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.



Specification:

Length: 50mm

Outside Diameter: 44mm

Bore Diameter: 12mm to 22mm

Max. Torque Range: 8.7N.m

Maximum Rotation Speed: 10000 RPM

Material: Aluminium Alloy and Stainless Steel



Feature:

Simple structure, inspection, installation is convenient;

Mini disc (MD) coupling assembly for use in applications requiring high torsional stiffness and torsional integrity;
