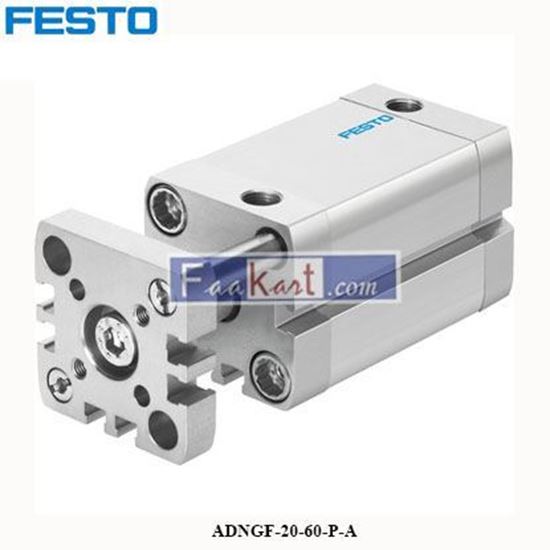

Picture of ADNGF-20-60-P-A FESTO compact cylinder

ADNGF-20-60-P-A FESTO compact cylinder

Compact double-acting pneumatic air cylinder actuator with built-in magnet + anti-rotation/torsion protection via guide rods + yoke plate - standard hole pattern - Festo (ADNGF Metric Series) - part number #554228 - 20mm bore (B20mm) - 60mm stroke length (S60mm) - M5 pneumatic connector - with elastic cushioning at both ends - rated for +1.5...+10bar - Round cylindrical shape - equipped with rails for position sens.
Be the first to review this product
Manufacturer: Festo
SKU: PCM135
350.00 (SAR)
222.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Properties
Stroke [mm] 60
Piston diameter 20 mm
Based on standard ISO 21287
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Construction set up Piston
piston rod
profile tube
Position detection For proximity switch
Anti-twist lock / guide Guide rod with yoke
Operating pressure [bar] 1.5 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] -20 to 80
Impact energy at the end positions [J] 0,20
Theoretical force at 6 bar, Return flow [N] 141
Theoretical force at 6 bar, flow [N] 188
Moving mass at 0 mm stroke [g] 60
Weight supplement per 10 mm stroke [g] 26
Base weight at 0 mm stroke [g] 161
Supplement moved mass per 10 mm stroke [g] 11
Pneumatic connection M5
Material information RoHs compliant
Cover material aluminium
anodized
Seals material TPE-U(PUR)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloy
Smooth anodised
