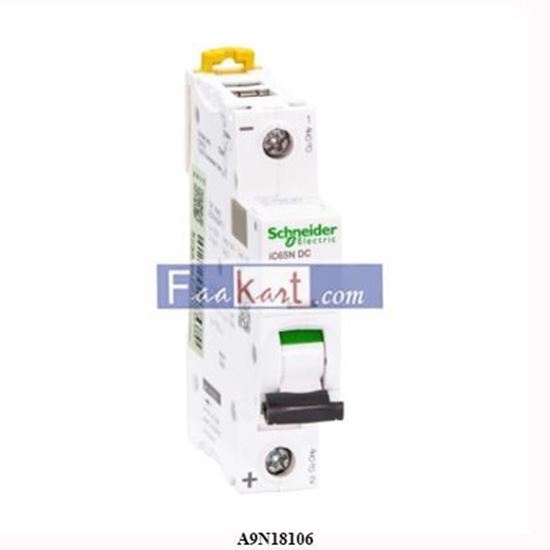

A9N18106 SCHNEIDER ELECTRIC MCB

Specification

main information

Product Series
Acti 9
product name
IC65
product type
Miniature Circuit Breaker
product short name
IC65N DC
number of poles
1P
Applications
Low voltage electrical distribution
Number of guard poles
1
Rated current [In]
6 A at 40 °C
Grid type
DC
Trip unit type
Thermomagnetic
Trip curve
C
Breaking capacity
6 kA Icu at 60 V DC
isolation function
Be applicable

Additional information

Rated operating voltage [Ue]
60 VDC
Magnetic trip limit
8.5 x In +/- 20 %
current limiting level
3
Rated impulse withstand voltage [Uimp]
6kV
Contact position indication
have
control type
handle
local signal indication
on/off indicator
installation type
locking clip lock
installation method
35 mm DIN rail
Width (multiples of 9mm)
2
high
85 mm
width
18 mm
depth
70 mm
color
White
Mechanical life
20000 times
Electrical life
10000 In
Wiring capacity
Bolt-on upper connection 1…25 mm² rigid or flexible
Bolt-on lower connection 1…16 mm² rigid or flexible
padlock device
Non padlockable
Tightening torque
2.5 N.m power circuit:
Leakage current protection
No leakage protection
The scope of products
IC65
