  • A9D31740 SCHNEIDER Acti 9 DPN N Vigi - RCBO - 3P+N - 40A - C Curve - 6000A - 30mA - type AC

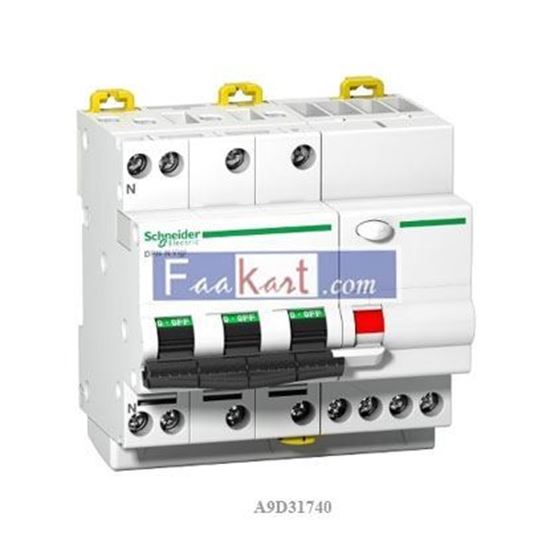

Picture of A9D31740 SCHNEIDER Acti 9 DPN N Vigi - RCBO - 3P+N - 40A - C Curve - 6000A - 30mA - type AC

A9D31740 SCHNEIDER Acti 9 DPN N Vigi - RCBO - 3P+N - 40A - C Curve - 6000A - 30mA - type AC

A9D31740 SCHNEIDER Acti 9 DPN N Vigi - RCBO - 3P+N - 40A - C Curve - 6000A - 30mA - type AC
Be the first to review this product
Manufacturer: Schneider
SKU: NSRN1755
2,654.00 (SAR)
2,217.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Description

This Acti9 DPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 3P+N circuit breaker with 3 protected poles, an in-rated current of 40A, and a C tripping curve. The earth leakage protection class is AC with a sensitivity of 30 mA. The earth-leakage protection time delay is instantaneous. The ICN-rated short circuit breaking capacity is up to 6000A according to the to the EN/IEC 61009-2-1 standard. This product protects against short circuits, cable overload, electrical shock by indirect contact, and fire hazards. Its earth fault indicator on the front face allows quick identification of the type of default. A green strip on the toggle guarantees the opening of all the poles in safe conditions. This product is compliant with the EN/IEC 61009-2-1 standard. It has an electrical endurance of up to 10000 cycles and a mechanical endurance of up to 20000 cycles. The Ue operational voltage is 380 VAC to 415 VAC. The Ui-rated insulation voltage is 440 VAC. The Uimp-rated impulse-withstand voltage is 4 kV. The frequency is 50/60 Hz. It is DIN rail-mountable. The width in 9-mm pitches is 10. The product color is white (RAL9003). The dimensions are (W) 90mm x (H) 91mm x (D) 78.5mm. The weight is 498g. It has an IP20 degree of protection (as per the IEC/EN 60529 standard) and becomes IP40 once in a modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature ranges from -30°C to 70°C.
