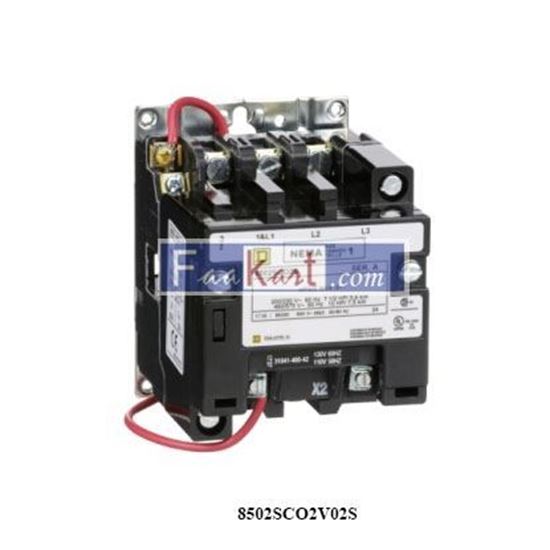

Picture of 8502SCO2V02S SQUARE D NEMA Contactor, Type S, nonreversing

8502SCO2V02S SQUARE D NEMA Contactor, Type S, nonreversing

Drawing for 8502SCO NEMA 27A 600V Contactors NEMA Contactor, Type S, nonreversing, Size 1, 27A, 10 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 120 VAC coil, open
Be the first to review this product
SKU: NSRN156
8,429.00 (SAR)
5,534.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Description

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Product Type Contactor
Product Range 8502S
Contactor Type Non-reversing
Complementary
NEMA Size 1
Rated Current 27 A
Number of Poles 3P
Maximum Voltage Rating 600 V AC
Phase 3 phase
Horsepower Rating 7.5 HP 200 V AC
7.5 HP 230 V AC
10 HP 460 V AC
10 HP 575 V AC
SCCR Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC
Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC
Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC
Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC
Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
Coil Voltage 120 V AC 60 Hz
110 V AC 50 Hz
Control Circuit Type Separate control circuit
Control Units No control units
Pilot Light No indicator
Auxiliary Contacts Without
Other Equipment Fuse not supplied
Terminal Type Screw clamp terminals
Height 4.34 in (110.24 mm)
Width 3.22 in (81.79 mm)
Depth 4.22 in (107.19 mm)
