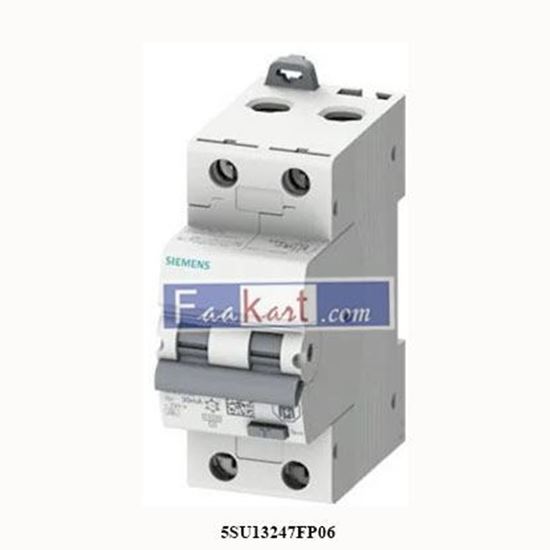

Picture of 5SU1324-7FP06 SIEMENS RCBO 2P 2MW, 6A 5SU13247FP06

5SU1324-7FP06 SIEMENS RCBO 2P 2MW, 6A 5SU13247FP06

5SU1324-7FP06 SIEMENS RCBO, 10 kA, 2P Type A, 30 mA, C-Char, In: 06A Un: 230V
Be the first to review this product
Manufacturer: SIEMENS
SKU: PCM1651
765.00 (SAR)
650.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical data

RCBO, 10 kA, 2P Type A, 30 mA, C-Char, In: 06A Un: 230V
Model
product brand name SENTRON
product designation RCBO
design of the product Instantaneous
General technical data
number of poles 2
number of poles / with protection 2
tripping characteristic class C
mechanical service life (switching cycles) / typical 10 000
overvoltage category III
degree of pollution 3
Voltage
type of voltage / of the operating voltage AC
insulation voltage (Ui) / rated value 500 V
surge voltage resistance / rated value 4 000 V
surge current resistance / at (8/20) µs 0.25 kA
Supply voltage
supply voltage
● at AC / rated value 230/240 V
● for testing equipment / minimum 195 V
operating frequency 50 Hz
supply voltage frequency / rated value 50 Hz
Protection class
protection class IP IP20, if the distribution board is installed, with connected conductors
Switching capacity
breaking capacity short-circuit current (Icn) / according to EN 61009-1 / rated value 10 kA
switching capacity current
● according to EN 60898 / rated value 10 kA
● according to IEC 60947-2 / rated value 15 kA
rated residual switching capacity (IΔm) / according to IEC 61009-1 4.5 kA
energy limitation class 3
Dissipation
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole 0.53 W
● maximum 1.1 W
Current
tripping fault current / rated value 30 mA
operational current
● at 30 °C / rated value 6 A
● at 40 °C / rated value 5.7 A
● at 45 °C / rated value 5.5 A
● at 50 °C / rated value 5.3 A
● at 55 °C / rated value 5.1 A
● at 60 °C / rated value 5 A
● at AC / rated value 6 A
residual current type A
Product details
product component / neutral conductor switching Yes
product feature / touch protection Yes
product feature
● halogen-free No
Connections
connectable conductor cross-section / solid
● maximum 35 mm²
connectable conductor cross-section / stranded
● maximum 35 mm²
connectable conductor cross-section / finely stranded / with core end processing
● maximum 35 mm²
tightening torque / with screw-type terminals
● minimum 2 N·m
● maximum 2 N·m
position / of power supply cord Either top or bottom
Mechanical Design
height 85 mm
width 36 mm
depth 72 mm
installation depth 70 mm
number of modular width units 2
mounting position Any
net weight 233 g
weight / with packaging 259 g
Environmental conditions
influence of the surrounding temperature Max. 95% humidity
ambient temperature / during operation
● minimum -25 °C
● maximum 40 °C
ambient temperature / during storage
● minimum -40 °C
● maximum 70 °C
number of test cycles / for environmental testing / according to IEC 60068-2-30 28
