512C/32/01/00/00 PARKER SSD DRIVES

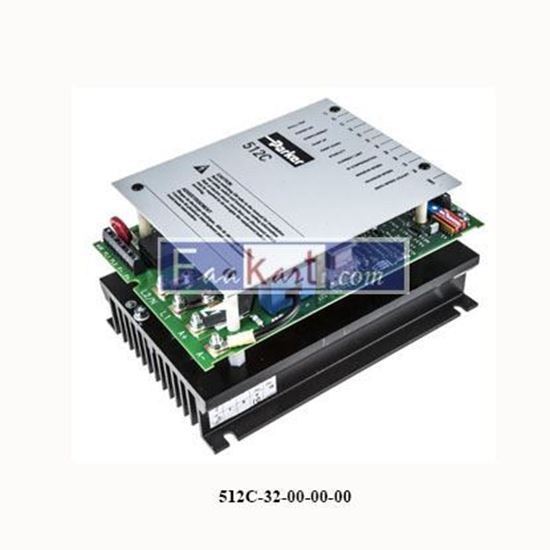

Parker SSD Drives 512C 32A Two Quadrant DC Thyristor (thyristor) Drive for 400V, 230V or 110V single/two phase supply.

Typical Motor Output from 400V AC supply: 8.2kW (11HP) at 320V DC for speed and torque control.
Typical Motor Output from 230V AC supply:  4.6kW (6.2HP) at 180V DC.
Typical Motor Output from 110V AC supply:  2.3kW (3.1HP) at 90V DC.
Simple to set-up in analogue, fully-isolated form and ready to run from its default settings.
Dimensions:  160mm Wide x 130mm Deep x 240mm High.
Mounting:  Panel mount with screw fixings on 253 x 120mm centres.

Terminals include:-
2 x Analogue Setpoint Inputs with Current Limit Input.
Tacho input (or internal AVF) Feedback.
4 x Analogue Outputs for Ramp, Total Setpoint, Actual Speed and Current.
2 x Digital outputs for Health and Zero Speed (selectable to Zero Setpoint) including + & - 10V power supply for Potentiometers.
Separate AC input to Field Bridge (allows flexibility for the Motor field Voltage).

Input Current:  48A.
Input Voltage:  110V/120V, 220V/240V, 380V/415V, or 460V/480V single phase/two phase +-10% at 50/60Hz.

Ambient:  Rated at 40C.
Ventilation space above and below:  75mm.
Ventilation space at sides:  0mm.
Heat Loss:  75W at maximum output.

Part number:  512C-32-00-00-00, Exactly the same as SSD Drives, Rapier Drives, Eurotherm Drives and RS - 512C-32-01-00-00.  Sometimes specified as 512C32000000.
