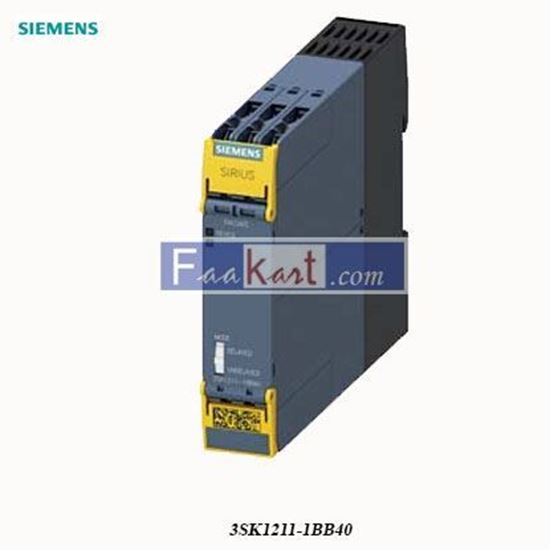

| SIRIUS safety relay Output expansion 4RO with relay enabling circuits 4 NO contacts plus Relay signaling circuit 1 NC contact Us = 24 V DC screw terminal |
| product brand name |
SIRIUS |
| product category |
Safety relays |
| product designation |
Output expansion |
| design of the product |
Relay enabling circuits |
| General technical data |
| protection class IP of the enclosure |
IP20 |
| touch protection against electrical shock |
finger-safe |
| insulation voltage rated value |
300 V |
| ambient temperature |
|
| ● during storage |
-40 ... +80 °C |
| ● during operation |
-25 ... +60 °C |
| air pressure according to SN 31205 |
900 ... 1 060 hPa |
| relative humidity during operation |
10 ... 95 % |
| installation altitude at height above sea level maximum |
2 000 m |
| vibration resistance according to IEC 60068-2-6 |
5 ... 500 Hz: 0.75 mm |
| shock resistance |
10g / 11 ms |
| surge voltage resistance rated value |
4 000 V |
| EMC emitted interference |
IEC 60947-5-1, IEC 61000 |
| installation environment regarding EMC |
This product is suitable for Class B environments and can also be used in domestic environments. |
| overvoltage category |
3 |
| degree of pollution |
3 |
| reference code according to EN 61346-2 |
F |
| reference code according to IEC 81346-2 |
F |
| power loss [W] maximum |
2.5 W |
| Safety Integrity Level (SIL) according to IEC 62061 |
3 |
| Safety Integrity Level (SIL) according to IEC 61508 |
3 |
| performance level (PL) according to ISO 13849-1 |
e |
| category according to EN ISO 13849-1 |
4 |
| PFHD with high demand rate according to EN 62061 |
0.0000000017 1/h |
| PFDavg with low demand rate according to IEC 61508 |
0.000001 |
| T1 value for proof test interval or service life according to IEC 61508 |
20 y |
| hardware fault tolerance according to IEC 61508 |
1 |
| safety device type according to IEC 61508-2 |
Type A |
| Inputs/ Outputs |
| number of outputs as contact-affected switching element |
|
| ● as NC contact |
|
| — for signaling function delayed switching |
0 |
| — for feedback circuit instantaneous contact |
1 |
| — safety-related instantaneous contact |
0 |
| — safety-related delayed switching |
0 |
| ● as NO contact |
|
| — for signaling function instantaneous contact |
0 |
| — for signaling function delayed switching |
0 |
| — safety-related instantaneous contact |
4 |
| — safety-related delayed switching |
0 |
| number of outputs as contact-less semiconductor switching element |
|
| ● for signaling function |
|
| — delayed switching |
0 |
| stop category according to EN 60204-1 |
0 |
| type of electrical connection plug-in socket |
No |
| operating frequency maximum |
360 1/h |
| switching capacity current of the NO contacts of the relay outputs |
|
| ● at DC-13 |
|
| — at 24 V |
5 A |
| — at 115 V |
0.2 A |
| — at 230 V |
0.1 A |
| ● at AC-15 |
|
| — at 24 V |
5 A |
| — at 115 V |
5 A |
| — at 230 V |
5 A |
| thermal current of the switching element with contacts maximum |
5 A |
| total current maximum |
12 A |
| operational current at 17 V minimum |
5 mA |
| mechanical service life (switching cycles) typical |
10 000 000 |
| design of the fuse link for short-circuit protection of the NO contacts of the relay outputs required |
gL/gG: 6A or circuit breaker type A: 3A or circuit breaker type B: 2A or circuit breaker type C: 1A |
| make time with automatic start |
|
| ● typical |
15 ms |
| ● at DC maximum |
30 ms |
| make time with automatic start after power failure |
|
| ● typical |
15 ms |
| ● maximum |
30 ms |
| backslide delay time in the event of power failure |
|
| ● typical |
10 ms |
| ● maximum |
15 ms |
| recovery time after power failure typical |
0.015 s |
| Control circuit/ Control |
| type of voltage of the control supply voltage |
DC |
| control supply voltage |
|
| ● at DC |
|
| — rated value |
24 V |
| operating range factor control supply voltage rated value of magnet coil |
|
| ● at DC |
0.8 ... 1.2 |
| Installation/ mounting/ dimensions |
| mounting position |
any |
| required spacing for grounded parts at the side |
5 mm |
| required spacing with side-by-side mounting at the side |
0 mm |
| fastening method |
screw and snap-on mounting |
| width |
22.5 mm |
| height |
100 mm |
| depth |
121.6 mm |
| Connections/ Terminals |
| type of electrical connection |
screw-type terminals |
| type of connectable conductor cross-sections |
|
| ● solid |
1x (0.5 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²) |
| ● finely stranded |
|
| — with core end processing |
1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| type of connectable conductor cross-sections at AWG cables |
|
| ● solid |
1x (20 ... 14), 2x (18 ... 16) |
| Product Function |
| product function parameterizable |
undelayed/delayed (only with system connector) |
| suitability for operation device connector 3ZY12 |
Yes |
| suitability for use |
|
| ● safety-related circuits |
Yes |
