Picture of 3RV20214BA15 Siemens Circuit breaker 3RV2021-4BA15

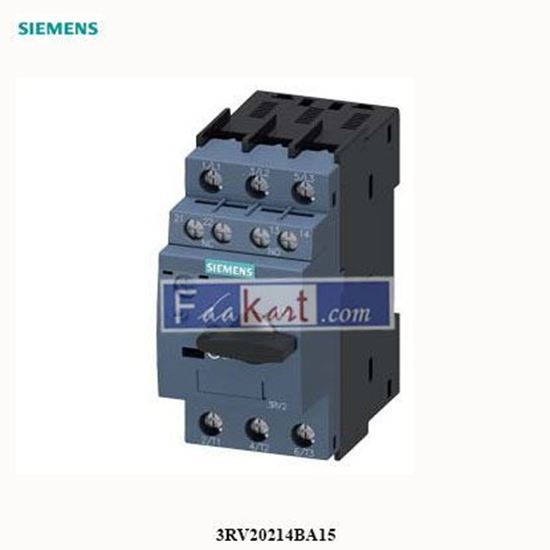

3RV20214BA15 Siemens Circuit breaker 3RV2021-4BA15

Circuit breaker size S0 for motor protection, CLASS 10 A-release 13...20 A N-release 260 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC
Be the first to review this product
Manufacturer: SIEMENS
SKU: PCM904
465.00 (SAR)
386.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Siemens 3RV20214BA15 Motor Protection Circuit Breaker, 690 VAC, 14 to 20 A, 4 kA Interrupt, 3 Poles, Thermal/Magnetic Trip



DESCRIPTION

The new SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three phase motors of up to 18.5 kW at 400 VAC and for other loads with rated currents of up to 40 A.

Siemens Motor Protection Circuit Breaker, 690 VAC, 14 to 20 A, 15 kW Power, 50/60 Hz Frequency, 4 kA Interrupt, 3RV2/S0 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 16 to 12 AWG, 14 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions

SPECIFICATIONS

Amperage Rating      :      14 to 20 A
Auxiliary Contact Rating      :      1NO-1NC
Connection Type      :      Screw
Dimensions      :      97 mm H x 45 mm W x 96 mm D
Enclosure Type      :      IP20
Frame      :      3RV2/S0
Frequency Rating      :      50/60 Hz
Interrupt Rating      :      4 kA
Mounting Type      :      DIN Rail
Number of Poles      :      3
Phase      :      3
Power Rating      :      15 kW
Temperature Rating      :      -20 to 60 deg C
Trip Type      :      Thermal/Magnetic
Voltage Rating      :      690 VAC
Wire Size      :      16 to 12 AWG, 14 to 8 AWG



FEATURES

  • Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
  • Standard switch capacity
  • (2) 16 to 12 AWG, (2) 14 to 8 AWG
  • - 50 to 80 deg C environmental conditions
  • Class 10 trip
  • 100000 cycles switching
  • With transverse auxiliary switch
