  • 1072635 SICK MultiTask photoelectric sensors PowerProx WTT12L-B2532

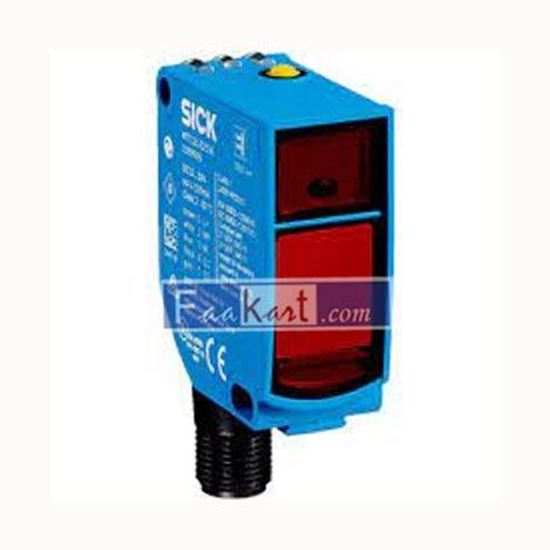

Picture of 1072635 SICK MultiTask photoelectric sensors PowerProx WTT12L-B2532

1072635 SICK MultiTask photoelectric sensors PowerProx WTT12L-B2532

1072635 SICK MultiTask photoelectric sensors PowerProx
Be the first to review this product
Manufacturer: Sick
SKU: PCM1081
1,855.00 (SAR)
1,703.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

  • Features
    Device type Photoelectric sensors
    Sensor/ detection principle Photoelectric proximity sensor, Background suppression
    Dimensions (W x H x D) 20 mm x 49.6 mm x 44.2 mm
    Housing design (light emission) Rectangular
    Sensing range max. 50 mm ... 2,500 mm 1)
    Sensing range 100 mm ... 2,500 mm 2)
    Type of light Visible red light
    Light source Laser 3)
    Light spot size (distance) Ø 14 mm (2,500 mm)
    Wave length 658 nm
    Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
    Adjustment Single teach-in button (1 x)
    • 1) Object with 6 ... 90 % remission (based on standard white to DIN 5033).
    • 2) Adjustable.
    • 3) Average service life: 100,000 h at TU = +25 °C.
  • Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption 70 mA 3)
    Switching output Push-pull: PNP/NPN 4)
    Number of switching outputs 2 (Q, /Q) 4)
    Switching mode Light/dark switching 4)
    Output current Imax. ≤ 100 mA
    Response time ≤ 0.5 ms 5)
    Switching frequency 1,000 Hz 6)
    Analog output -
    Input Sender off
    Connection type Male connector M12, 5-pin
    Circuit protection

    A 7)

    B 8)

    C 9)
    Protection class III
    Weight 48 g
    Housing material Plastic, VISTAL®
    Optics material Plastic, PMMA
    Enclosure rating IP67
    Ambient operating temperature –35 °C ... +50 °C 10)
    Ambient temperature, storage –40 °C ... +70 °C
    Warm-up time < 15 min 11)
    Initialization time < 300 ms
    UL File No. NRKH.E181493
    • 1) Limit values. Operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load. At VS = 24 V.
    • 4) Q, /Q = 1 switching threshold, light/dark switching (complementary).
    • 5) Signal transit time with resistive load.
    • 6) With light/dark ratio 1:1.
    • 7) A = VS connections reverse-polarity protected.
    • 8) B = inputs and output reverse-polarity protected.
    • 9) C = interference suppression.
    • 10) As of Ta = 45 °C, a max.load current Imax = 50 mA is permitted.
    • 11) Below Tu = –10 °C a warm-up time is necessary.
  • Safety-related parameters
    MTTFD 138 years
    DCavg 0 %
    TM (mission time) 20 years
