SIMOCODE DP basic unit PROFIBUS DP interface 1.5 Mbaud, RS485 4I/4O freely parameterizable US: 230 V AC, 50/60 Hz 125...500 A, overall width 145 mm Input for thermistor connection Monostable outputs

Description: SIMOCODE DP basic unit PROFIBUS DP interface 1.5 Mbaud, RS485 4I/4O freely parameterizable US: 230 V AC, 50/60 Hz 6.3...25 A, overall width 70 mm Input for thermistor connection Monostable outputs

memory card Copy and/or know-how protection of LOGO! control program from..0BA4

1FK7060-5AF71-1AA0 SIEMENS SERVO MOTOR

1FK7085-7AF71-1SH0 SIEMENS SIMOTICS S SYNCHRONOUS SERVO MOTOR 1FK7 HIGH DYNAMIC 22 NM 100K, 3000 RPM, 3.14 KW NATURALLY COOLED IM B5 (V1, V3) POWER/SIGNAL CONNECTOR PLUG ROTATABLE BY 270° RESOLVER MULTI-POLE (RESOLVER P=4); PLAIN SHAFT, TOLERANCE N; WITH HOLDING BRAKE DEGREE OF PROTECTION IP64

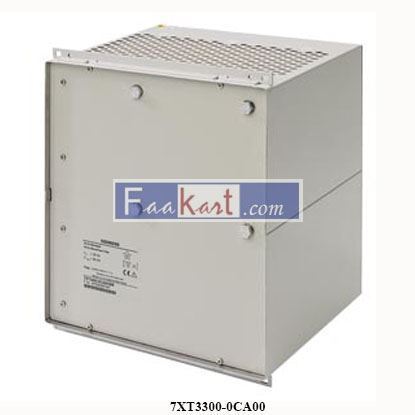

20 HZ FREQUENCY GENERATOR FOR EARTH FAULT 100% PROTECTION THE 20HZ FREQUENCY GENERATOR CREATES A 20HZ SQUARE WAVE VOLTAGE WITH AN AMPLITUDE OF APPROX. 25V. THIS VOLTAGE IS CONNECTED VIA BANDPASS AND A LOAD RESISTOR TO THE STATOR CIRCUIT OF THE GENERATOR. THE FREQUENCY GENERATOR IS CONNECT. (THREE PHASE) TO THE VOLTAGE TRANSFORMER. ALTERNATIVELY A POWER SUPPLY VIA THE STATION BATTERY(100,220V DC) IS POSSIB. MAX. POWER CONSUMPT.APPROX.80VA MEASUREMENT VALUE PROCESSING WILL DONE BY 7UM515 IN 7XP20 CASE FOR FLUSH MOUNTING
