7ML5033-1BA00-1A MultiRanger 100/200 Ultrasonic level controller: continuous, non-contact, 15 m (50 ft) range. Monitors level, volume, and open channel flow in liquids, slurries, and solids. Versions: MultiRanger 100, level measurement Mounting, enclosure design: Wall mount, 4 entries, 4 M20 cable glands included Product is in phase out but still available to order, Consider replacing with 7ML5033-xE Input voltage: 100 to 230 VAC Number of measurement points: Single point version Data Communications (Smartlinx): Without module Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, FM, CCSAUS, UL Listed, RCM, EAC, KC

SITRANS LUT400 Series Ultrasonic level controller: continuous, non-contact, 60 m (197 ft) range. Monitors level, volume, and volume flow in liquids, slurries, and solids. With high-accuracy volume flow and built-in data logging. - Model: SITRANS LUT420, Level controller Enclosure Display Options: With display Input Voltage: 100 to 230 V AC +/- 15% Cable Inlet: 3 cable inlets, 3 M20 plastic cable glands supplied Number of measurement points: single-point system (includes one transducer input,one mA output and one external temperature sensor input) Communications & I/O: HART, 2 discrete inputs, 3 relays Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, FM, CCSAUS, UL, RCM, EAC, KC

SITRANS Probe LU240 Ultrasonic level Transmitter is ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft). . Communications: 4 to 20 mA level only Ingress protection: IP66, IP68, TYPE 4X, 6 Measurement range/wetted parts: 200 ... 3000 mm (7.87 ... 118.11 inch), PVDF Copolymer Process connection: 2" NPT [(Taper), ASME B1.20.1] . Non-wetted parts: Plastic (PBT/PC material) Enclosure Type of protection: non-ex (ordinary locations) cCSAus, CE, RCM, and EAC Electrical connections/cable entries: 2 x M20 x 1.5 (one general-purpose Polyamide cable gland and one Polyamide blocking plug provided) Local HMI: Without display (blind lid of PBT/PC material)

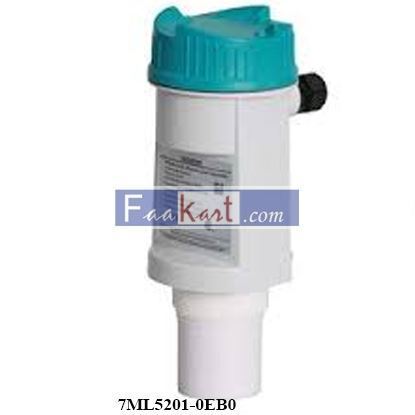

7ML5201-0EB0 ULTRASONIC LEVEL SENSOR, SIEMENS

SITRANS Probe LU Ultrasonic level transmitter: continuous, non-contact, up to 12m (40 ft) range. Monitors level and volume in liquids and slurries. With optional PROFIBUS PA. Enclosure/Cable Inlet: Plastic (PBT) 2 x M20 (includes 1 general purpose cable gland) Range / Transducer material: 12 meter (40 ft), PVDF Copolymer Process Connection: 2" NPT ((Taper), ANSI/ASME B1.20.1) Communication / Output: 4-20mA, HART Approval: Intrinsically safe, ATEX II 1 G EEx ia IIC T4, ANZEx, IECEx, INMETRO, CE, C-TICK, KCC

SITRANS Probe LU Ultrasonic level transmitter: continuous, non-contact, up to 12m (40 ft) range. Monitors level and volume in liquids and slurries. With optional PROFIBUS PA. Product is in phase out but still available to order, Consider replacing with: SITRANS Probe LU240 7ML51 Enclosure/Cable Inlet: Plastic (PBT), 2 x 1/2" NPT (no cable glands supplied) Range / Transducer material: 6 meter (20 ft), PVDF Copolymer Process Connection: 2" NPT ((Taper), ANSI/ASME B1.20.1) Communication / Output: 4-20mA, HART obsolete Approval: ATEX 1G Ex ia IIC T4 Ga, Ta = -40°C to +80°C; UKEX 1G Ex ia IIC T4 Ga, Ta = -40°C to +80°C; IECEx Ex ia IIC T4 Ga, Ta = -40°C to +80°C; INMETRO Ex ia IIC T4 Ga, IP67/IP68, -40°C = Ta = +80°C; KCs Ex ia IIC T4; RCM
