Schneider

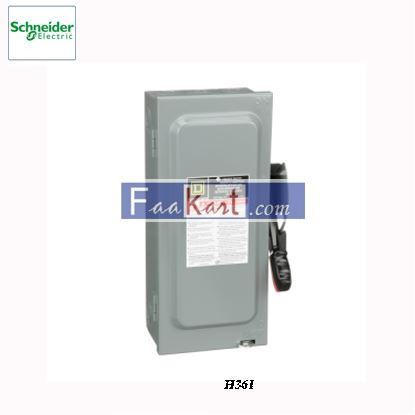

Main Product Single Throw Safety Switch Current Rating 30 A Certifications UL listed file E2875 Enclosure Rating NEMA 1 steel Factory Installed Neutral None Disconnect Type Fusible disconnect Short Circuit Current Rating 10 kA H or K 200 kA R, J or L Mounting Type Surface Number of Poles 3 Electrical Connection Lugs Duty Rating Heavy duty Voltage Rating 600 V AC/DC Wire Size AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper Complementary width 7.55 in (191.77 mm) height 14.6 in (370.84 mm) depth 4.87 in (123.70 mm) tightening torque 5.08 N.m (45 lbf.in) 0.02 in² (13.3 mm²) AWG 6) 4.52 N.m (40 lbf.in) 0.01 in² (8.367 mm²) AWG 8) 3.95 N.m (35 lbf.in) 0.00…0.01 in² (2.06…5.261 mm²) AWG 14...AWG 10)

SW FUSIBLE 30A 2P NEMA4 4X 5 STAINLESS

Manufacturer Square D (Schneider Electric) Manufacturer # H200SN Voltage (Volts) 240V AC AND 600V AC UNSPSC 39122205 Amps 400A, 600A

product or component type Safety switch solid neutral assembly product destination Safety switch Ordering and shipping details Category 00058 - MISC SWITCH ACCESSORIES Discount Schedule DE1 GTIN 00785901266228 Returnability Yes Country of origin MX

product or component type Safety switch solid neutral assembly product destination Safety switch Ordering and shipping details Category 00058-MISC SWITCH ACCESSORIES Discount Schedule DE1 GTIN 00785901264316 Returnability Yes Country of origin US

Main range of product Square D product or component type Safety switch grounding bar series name Heavy duty Complementary Line Rated Current 60 A F1 60 A F3 60 A F5 60 A F7 100 A F2 100 A F7 AWG gauge AWG 4 copper or aluminium
