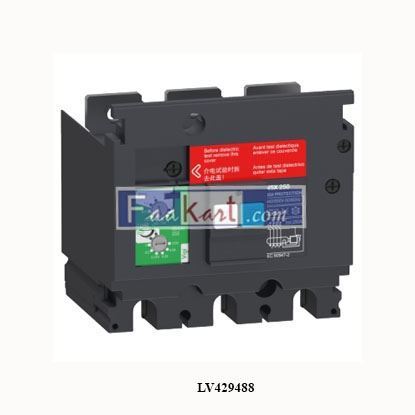

This is a Vigi add-on module for ComPact NSX 100/160 that provides an earth-leakage protection. It is used for 3 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.

It is a MH Vigi add-on module for 3 poles Compact NSX 100/160 and EasyPact CVS 100/160. It provides an earth-leakage protection when installed directly on the device terminals. It directly actuates the trip unit in case of insulation fault. The addition of this Vigi add-on module does not modify Compact NSX 100/160 or EasyPact CVS 100/160 characteristics. It is a MH type module in 3 poles version, self-powered by the input voltage. The operational voltage for the Vigi add-on is from 200VAC to 440VAC 50/60Hz. The sensitivity is adjustable from 30mA to 10A, the time delay is also adjustable. The dimensions of the circuit breaker equipped with this module are 105mm x 236mm x 86mm.

LC1D1201, Telemecanique, contactor, TeSys D, type LC1D, 3P, 3PH, 25A, 600V, 3HP @ 240V, 7.5HP @ 480V, 10HP @ 600V, complete with 110/120V AC coil, 1 N/O, 2 N/C auxiliary contact, AC magnetic contactor, suitable for use with LC1-D series motor control systems

This is a Vigi add-on module for ComPact NSX 100/160 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.

370678 | Temposonics M12 female connector (5 pin), angled, is suitable for the Temposonics E Series, GB Series, & R-Series ranges.

This Harmony XB5N/XB7N single contact block uses screw clamp terminals. The single-contact block features protected terminals. It is easily installed and replaced on XB5N/XB7N complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has a clear color scheme. It is an IP65-rated product. It offers mechanical durability of about 5 million operating cycles and electrical durability of about 1 million operating cycles. It is made of a plastic fixing collar with an AgNi contact. It weighs 0.011kg. It is used by machine manufacturers (automotive, textiles, and timber) and control system panel builders. It is also suitable for service sector and infrastructure applications such as energy distribution panel builders and public works. This product is certified by UL. It complies with IEC 529 standards. The modular Harmony XB4 range of 22mm metal control and signalling units combines simplicity of installation, efficiency, modern design, flexibility, and robustness to meet most industrial applications.
