Description This ComPacT NSX100H is a complete 4P 3D fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (ICU) is 70 kA rms at 415 VAC, 50/60 Hz. The operational voltage is 690 VAC, 50/60 Hz. This product embeds a 100A-rated thermal-magnetic trip unit (TMD). The TMD trip unit provides adjustable thermal overload protection and fixed magnetic protection. This 4-pole version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX100H is part of the Schneider Electric EcoStruxure Power architecture.

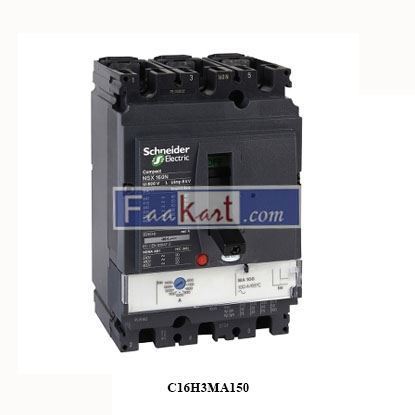

Description This ComPacT NSX160H is a complete 3P-3D fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (ICU) is 70 kA rms at 415 VAC, 50/60 Hz. The operational voltage is 690 VAC, 50/60 Hz. This product embeds a 150A-rated magnetic trip unit (MA). The MA trip unit provides adjustable magnetic protection for instantaneous tripping. This 3-pole version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX160H is part of the Schneider Electric EcoStruxure Power architecture.

Description This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with a power rating of up to 5.5 kW or 7.5 hp for applications requiring a slight overload (up to 120%). It is suitable for motors with a power rating of up to 4 kW or 5 hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage of 380V to 480V AC. This variable speed/ffrequency drive (VSD/VVFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage, water, and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in the event of a connection breakdown. Web servers and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in a vertical position (+/- 10°) on a wall.

Description TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications, 2.2kW@400V. It provides thermal-magnetic protection with a thermal setting range of 4-6.3A, magnetic tripping at 13xIn, and a high breaking capacity of ICU 100kA at 400V. Connection by screw-clamp terminals. Start-stop control by rotary knob is guaranteed for 100,000 cycles of AC-3. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), green premium compliant (RoHS/REACH).

Description Harmony 22-mm modular push buttons, selector switches, and pilot lights are designed for industry. This range combines simplicity of setup, flexibility, and a robust construction. An ingenious locking system consisting of a snap-fit head and body that can be tightened with a single screw while still ensuring easy and secure mounting. Harmony XB4/ZB4 are 22-mm chromium-plated metal modular push buttons, selector switches, and pilot lights connected to a fully metal mounting collar. The operators can be purchased as complete operators or as various modules that can be assembled to meet the user’s specific requirements. Harmony XB5/ZB5 are 22-mm plastic modular push buttons, selector switches, and pilot lights. The operator can have a round or square plastic bezel. The contacts can be used for low-load electrical contact and high-power applications. Shake-proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high-pressure cleaning, dust, and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, and timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS, and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Description This Harmony XB7, plain lens monolithic orange pilot light is supplied with 24V AC/DC and uses an integral LED and screw clamp terminals. It is easily installed into standard 22-mm-diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via an integral LED, enabling complex machine statuses to be read at a glance. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP65 rating, making it ideal for operation in harsh environments. It has a double-insulated plastic bezel. Its wide range of operating temperatures, from -25°C to 70°C, allows versatility in the usage of the product.
