Products tagged with 'ultrasonic level transmitter'

SITRANS Probe LU240 Ultrasonic level Transmitter is ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft). . Communications: 4 to 20 mA level only Ingress protection: IP66, IP68, TYPE 4X, 6 Measurement range/wetted parts: 200 ... 3000 mm (7.87 ... 118.11 inch), PVDF Copolymer Process connection: 2" NPT [(Taper), ASME B1.20.1] . Non-wetted parts: Plastic (PBT/PC material) Enclosure Type of protection: non-ex (ordinary locations) cCSAus, CE, RCM, and EAC Electrical connections/cable entries: 2 x M20 x 1.5 (one general-purpose Polyamide cable gland and one Polyamide blocking plug provided) Local HMI: Without display (blind lid of PBT/PC material)

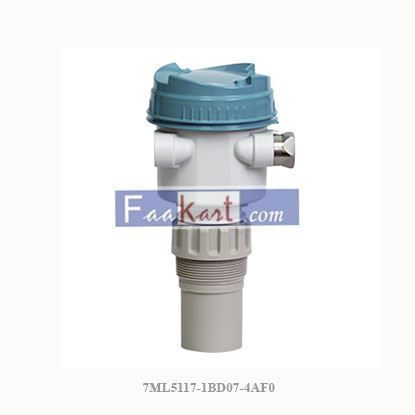

SITRANS Probe LU Ultrasonic level transmitter: continuous, non-contact, up to 12m (40 ft) range. Monitors level and volume in liquids and slurries. With optional PROFIBUS PA. Product is in phase out but still available to order, Consider replacing with: SITRANS Probe LU240 7ML51 Enclosure/Cable Inlet: Plastic (PBT), 2 x 1/2" NPT (no cable glands supplied) Range / Transducer material: 12 meter (40 ft), PVDF Copolymer Process Connection: 2" NPT ((Taper), ANSI/ASME B1.20.1) Communication / Output: 4-20mA, HART obsolete Approval: ATEX 1G Ex ia IIC T4 Ga, Ta = -40°C to +80°C; UKEX 1G Ex ia IIC T4 Ga, Ta = -40°C to +80°C; IECEx Ex ia IIC T4 Ga, Ta = -40°C to +80°C; INMETRO Ex ia IIC T4 Ga, IP67/IP68, -40°C = Ta = +80°C; KCs Ex ia IIC T4; RCM

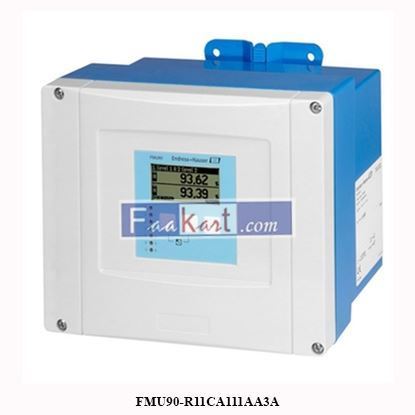

FMU90-R11CA111AA3A | Endress+Hauser | Ultrasonic measurement Time-of-Flight Prosonic FMU90 FMU90-R11CA111AA3A
