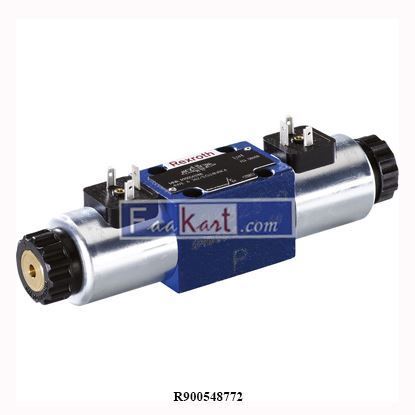

R900548772
DIRECTIONAL CONTROL VALVE
D03 SIZE
MODEL # 4WE6J6X/EG24N9K4/V
MAX FLOW = 20 GPM
MAX PRESSURE = 5000 PSI (350 BAR)
3 POSITON & 4 WAY
DOUBLE SOLENOID
A & B OPEN TO T
P BLOCKED
24 VDC COILS (DIN PLUG STYLE)
VITON SEALS
REPLACES # 0-810-091-212
